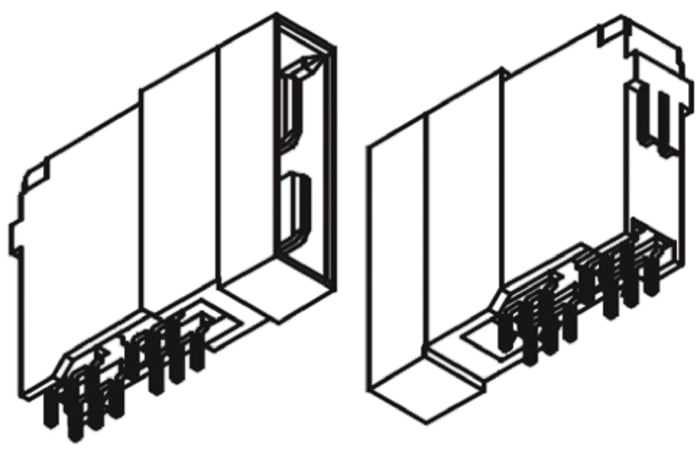

Molex EXTreme PowerMass Series Right Angle Through Hole PCB Header, 1 Contact(s), 3.2 mm Pitch, 1 Row, Shrouded
Technical Document
Specifications
Brand
MolexSeries
EXTreme PowerMass
Product Type
PCB Header
Pitch
3.2mm
Current
150A
Number of Contacts
1
Housing Material
Thermoplastic
Number of Rows
1
Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Connector System
Board-to-Board
Mount Type
Through Hole
Contact Material
Copper Alloy
Contact Plating
Gold
Minimum Operating Temperature
-40°C
Row Pitch
3.2mm
Termination Type
Solder
Maximum Operating Temperature
105°C
Standards/Approvals
No
Voltage
600 V
Product details
EXTreme PowerMass™ 150 Amp Module
EXTreme PowerMass PCB receptacle power connectors for high capacity board-to-board applications. These EXTreme PowerMass PCB receptacle power connectors offer 350.0A per inch current density and less than 1 mΩ resistance at end-of-life allowing minimum heat generation with maximum current transfer.
Molex EXTreme PowerMass™ Range
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 11.31
€ 11.31 Each (Exc. VAT)
1
€ 11.31
€ 11.31 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 19 | € 11.31 |
| 20 - 74 | € 9.70 |
| 75 - 299 | € 8.63 |
| 300 - 599 | € 7.38 |
| 600+ | € 7.00 |
