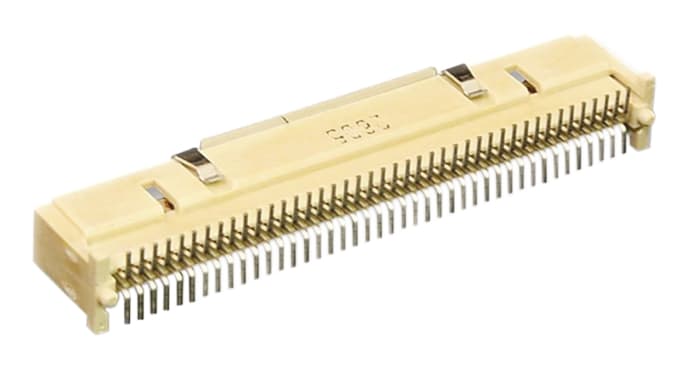

Molex PMC Mezzanine Series Straight Surface PCB Header, 84 Contact(s), 1 mm Pitch, 2 Row, Shrouded

Name: Molex PMC Mezzanine Series Straight Surface PCB Header, 84 Contact(s), 1 mm Pitch, 2 Row, Shrouded
Brand: Molex
SKU: 8486780P
Availability: LimitedAvailability

RS Stock No.: 848-6780PBrand: MolexManufacturers Part No.: 71741-0002

View all in PCB Headers

Technical Documents

Specifications

Brand

Molex

Product Type

PCB Header

Series

PMC Mezzanine

Pitch

1mm

Current

Number of Contacts

Housing Material

Thermoplastic

Number of Rows

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

Board-to-Board

Mount Type

Surface

Contact Material

Phosphor Bronze

Contact Plating

Gold

Minimum Operating Temperature

-55°C

Row Pitch

1mm

Termination Type

Solder

Contact Gender

Male

Maximum Operating Temperature

85°C

Standards/Approvals

Voltage

100V

Product Details

Molex 1.0mm PCM Mezzanine Board to Board Vertical Stacking SMT Plug Connectors, 71741 Series

Molex 1.0mm PCM Mezzanine Board to Board Connectors

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in PCB Headers

Stock information temporarily unavailable.

€ 68.42

€ 6.84 Each (Supplied on a Reel) (Exc. VAT)

Molex PMC Mezzanine Series Straight Surface PCB Header, 84 Contact(s), 1 mm Pitch, 2 Row, Shrouded

Select packaging type

€ 68.42

€ 6.84 Each (Supplied on a Reel) (Exc. VAT)

Molex PMC Mezzanine Series Straight Surface PCB Header, 84 Contact(s), 1 mm Pitch, 2 Row, Shrouded

Stock information temporarily unavailable.

Select packaging type

Quantity	Unit price
10 - 24	€ 6.84
25 - 49	€ 6.03
50 - 99	€ 5.25
100+	€ 4.83
