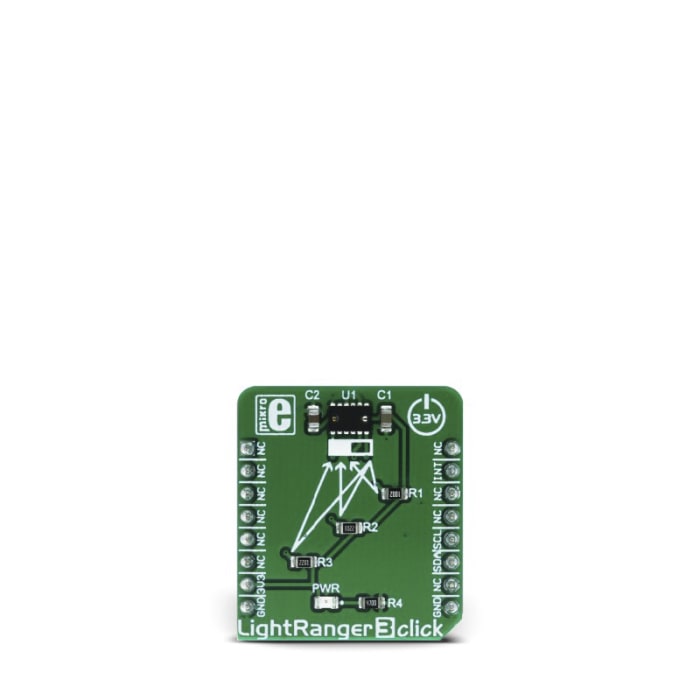

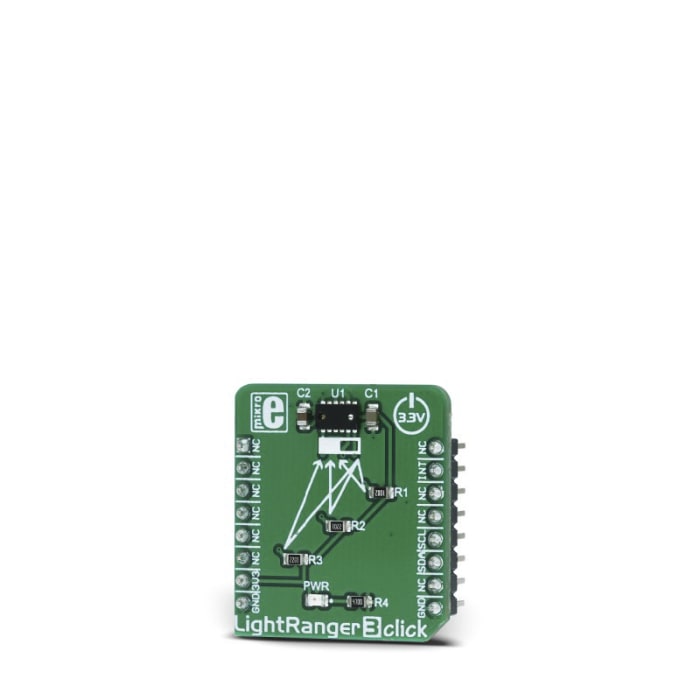

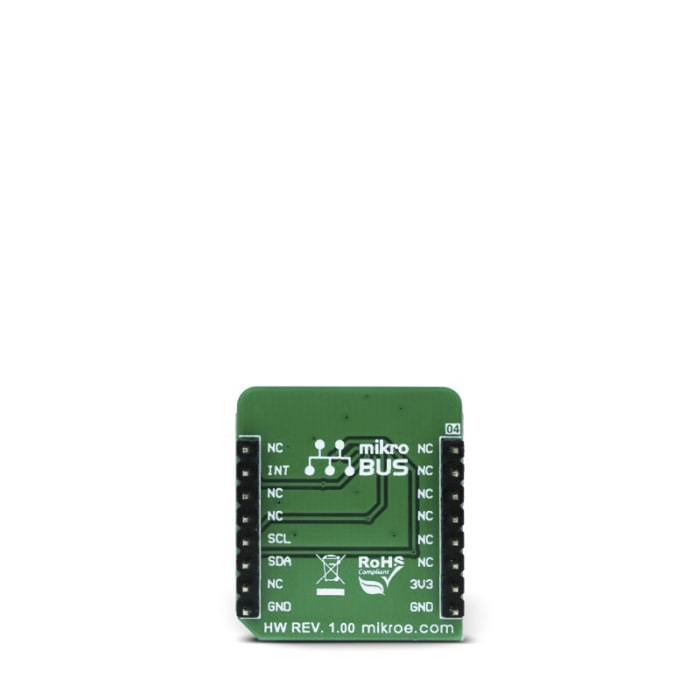

MikroElektronika Development Kit 3D Visual Guidance Applications in Robotics

Name: MikroElektronika Development Kit 3D Visual Guidance Applications in Robotics
Brand: MikroElektronika
SKU: 1840928
Availability: LimitedAvailability

RS Stock No.: 184-0928Brand: MikroElektronikaManufacturers Part No.: MIKROE-3103

View all in Sensor Development Tools

Technical Documents

Specifications

Brand

MikroElektronika

Product Type

Sensor Development Tool

For Use With

3D Visual Guidance Applications in Robotics

Kit Classification

Development Kit

Standards/Approvals

RoHS

Product Details

Fully Integrated microelectronic device with an embedded sensor and VCSEL(Vertical Cavity Surface Emitting Laser)
850 nm VCSEL and electronic driver
Optical receiver sensor and optics
Microelectronic controller
Time-of-Flight (ToF) is a highly accurate distance mapping and 3D imaging technology
Eye safe invisible infrared (IR) illumination using a class 1 laser emitter
High accuracy and high repeatability
I2C interface for device control and data transfer
Ultra-small SMD package
Standard solder reflow compatible
Lead-free
Small size 4.8mm x 2.8mm x 1mm
Applications
Absolute and highly accurate distance measurement at distances
ranging from 100 mm to 2000 mm
User detection for IoT devices
Robotics applications such as obstacle detection and obstacle
avoidance
White goods type of applications such as hand detection in
automatic faucets and soap dispensers
1D gesture recognition
Directional movement detection along Z-axis
Volume or height control
