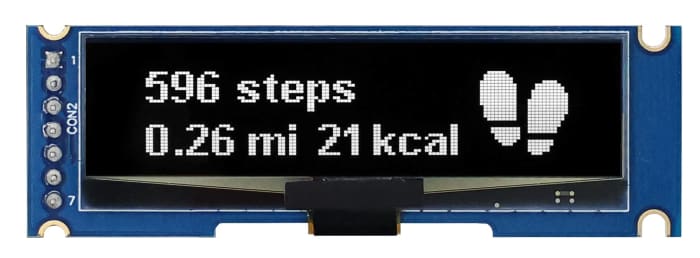

Midas 2 in Passive matrix White OLED Display 128 x 32 pixel COB SPI

RS Stock No.: 428-545Brand: MidasManufacturers Part No.: MDOB128032IV-WS
brand-logo
View all in OLED Displays

Technical Document

Specifications

Brand

Midas

Product Type

OLED Display

Diagonal Display Size

2in

Viewing Area Dimensions

50.535 x 10.695 mm

Matrix Type

Passive

Screen Resolution

128 x 32 pixel

Interface Type

SPI

Contrast Ratio

10000:1

Driver Mounting

COB

External Depth

5.96mm

External Height

18.86mm

Minimum Operating Temperature

-40°C

External Width

59.0mm

Maximum Operating Temperature

80°C

Touch Screen Type

OLED

Standards/Approvals

RoHS

Display Colour

White

Country of Origin

Taiwan, Province Of China

View all in OLED Displays

Stock information temporarily unavailable.

€ 20.21

€ 20.21 Each (Exc. VAT)

Midas 2 in Passive matrix White OLED Display 128 x 32 pixel COB SPI

1

Available in multiples of 1
1€ 20.21
2€ 40.42
3€ 60.63
4€ 80.84
5€ 101.05
6€ 121.26
7€ 141.47
8€ 161.68
9€ 181.89
10€ 181.96
11€ 200.15
12€ 218.35
13€ 236.54
14€ 254.74
15€ 272.94

€ 20.21

€ 20.21 Each (Exc. VAT)

Midas 2 in Passive matrix White OLED Display 128 x 32 pixel COB SPI

Stock information temporarily unavailable.

1

Available in multiples of 1
1€ 20.21
2€ 40.42
3€ 60.63
4€ 80.84
5€ 101.05
6€ 121.26
7€ 141.47
8€ 161.68
9€ 181.89
10€ 181.96
11€ 200.15
12€ 218.35
13€ 236.54
14€ 254.74
15€ 272.94

QuantityUnit price
1 - 9€ 20.21
10 - 99€ 18.20
100+€ 16.77
