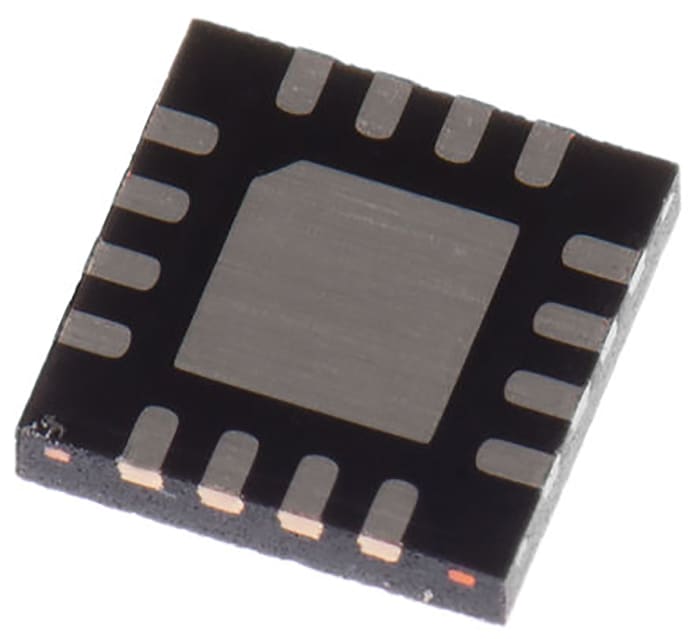

Microchip PIC16F1824-E/ML, 8bit PIC Microcontroller, PIC16F, 32MHz, 4 kB Flash, 16-Pin QFN

Brand

Family Name

PIC16F

Package Type

QFN

Mounting Type

Surface Mount

Pin Count

16

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

4 kB

Maximum Frequency

32MHz

RAM Size

256 B

USB Channels

0

Number of PWM Units

2

Number of SPI Channels

2

Number of UART Channels

1

Number of I2C Channels

2

Typical Operating Supply Voltage

1.8 → 5.5 V

Number of USART Channels

1

Number of CAN Channels

0

Number of Ethernet Channels

0

Number of PCI Channels

0

Maximum Operating Temperature

+125 °C

Length

4mm

ADCs

8 x 10 bit

Height

0.95mm

Number of LIN Channels

0

Width

4mm

Program Memory Type

Flash

Dimensions

4 x 4 x 0.95mm

Pulse Width Modulation

2 CCP, 2 ECCP

Minimum Operating Temperature

-40 °C

Instruction Set Architecture

RISC

Number of ADC Units

1

Maximum Number of Ethernet Channels

0

Country of Origin

Thailand
