Microchip ZigBee Transceiver, 12-Pin Module

Name: Microchip ZigBee Transceiver, 12-Pin Module
Brand: Microchip
SKU: 6665748P
Availability: LimitedAvailability

RS Stock No.: 666-5748PBrand: MicrochipManufacturers Part No.: MRF24J40MA-I/RM

View all in RF ICs

Technical Documents

Specifications

Brand

Microchip

Product Type

ZigBee Transceiver

Technology

IEEE 802.15.4

Sub Type

Transceiver

Modulation Technique

O-QPSK

Package Type

Module

Data Rate

250kbps

Pin Count

Mount Type

Surface

Interface Type

SPI

Operating Band 1 Frequency

2.48GHz

Minimum Supply Voltage

3.6V

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Height

0.89mm

Length

27.94mm

Standards/Approvals

Series

MRF24J40MA

Number of Operating Bands

Automotive Standard

Product Details

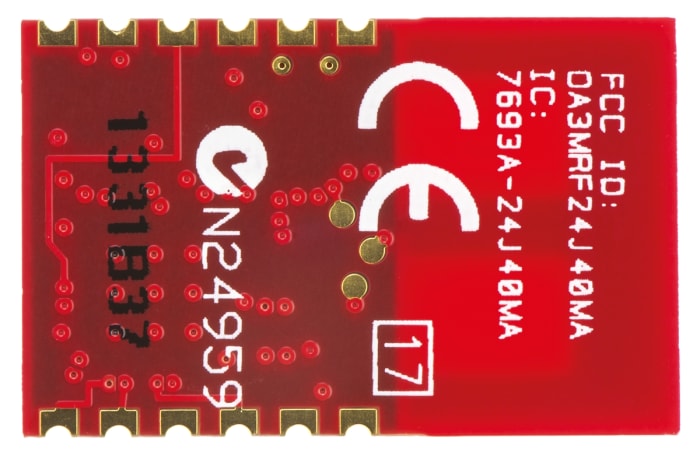

MRF24J40MA ZigBee Module

Microchips MRF24J40MA is a very small, wireless 2.4GHz IEEE 802.15.4 transceiver module. This module is surface mounted and comes with an integrated PCB antenna, internal voltage regulator and integrated crystal oscillator. MRF24J40MA is compatible with a range of software including ZigBee, MiWi and MiWi P2P. Not to mention, this module is compliant with a range of PIC families include PIC16F, PIC18F, PIC24F/H, dsPIC33 and PIC32.

Features and benefits:

Tiny, surface mountable module allows you to easily integrate it into your design

2.4GHZ, IEEE 802.15.4 standard with ZigBee, MiWi and MiWi P2P support

Strong AES-128 encryption for all your security needs

FCC, IC and ETSI certified

Brilliant compatibility with Microchips PIC families

On-board crystal oscillator, antenna and voltage regulator

Four wire SPI-interface with maximum data speeds of 250Kbps

Up to an impressive 120m range

3.3V typical voltage but can be used in between 3.0 to 3.6V

Applications:

Wireless sensor networks,

Home automation

Building automation

Consumer applications

AES-128 encryption:

The on-board encryption is a great tool to help protect your privacy and data. AES-128 is a symmetric key encryption cypher and allows you to have a secure key to encrypt & decrypt your data. Symmetric ciphers are much more efficient for encrypting large amounts of data, easily.

Software:

You can find a range of software with the open-source code available at: http://www.microchip.com/wireless
