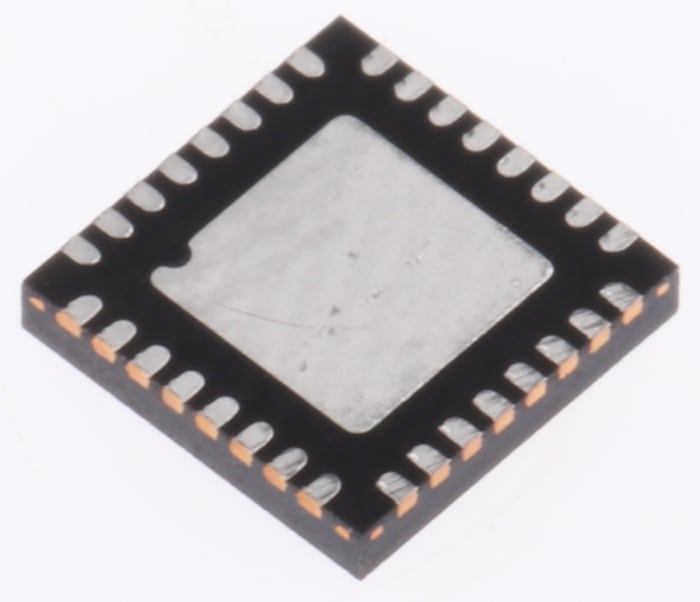

Microchip AT86RF233-ZU, Zigbee Transceiver 2.32GHz to 2.5GHz 32-Pin QFN

These AT86RF23x low-power 2.4GHz IEEE 802.15.4 compliant transceivers are designed for both industrial and consumer high data rate applications.

RF Frequency range: 2405 to 2480MHz
RF Output Power: up to +4dBm (AT86RF233), up to +3dBm (AT86RF231)
Receiver Sensitivity: -101dBm @ 250kbps, 1% PER
Modulation: O-QPSK with 2000kchip/sec DSSS
Supports Frequency hopping (FHSS)
OTA data rate: up to 2Mbps
FCS generation/checking and Clear Channel Assessment
RSSI measurement, Energy Detection and Link Quality Indication
Automated acknowledgement, CSMA-CA and retransmission
Automatic address filtering
Supports Rx antenna diversity
AES-128 security module
True Random Number Generator (TRNG)
128-byte Tx/Rx FIFO data buffer
Host communication: serial SPI
Battery monitor
Various low-power operation modes
Power supply: +1.8V to +3.6Vdc
Operating temperature range: -40 to +85°C
The AT86RF231 is IEEE 802.15.4-2006 compliant for ZigBee, 6LoWPAN, RF4CE, SP100 & WirelessHART systems
The AT86RF233 is IEEE 802.15.4-2011 compliant for ZigBee, 6LoWPAN & RF4CE systems
Applications: Home & Building Automation, Lighting Systems

ETSI, FCC, ARIB
