Technical Documents
Specifications
Brand
MeggerMultimeter Type
Handheld
Product Type
Multimeter
Display Type
Digital
Functions Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance
Maximum Resistance Measurement
60mΩ
Maximum DC Voltage Measurement
1000V dc
Maximum AC Voltage Measurement
750V ac
True RMS
Yes
DC Voltage Accuracy
±0.5 % rdg + 2 Digits
AC Voltage Accuracy
±0.5 % rdg + 2 Digits
AC Current Accuracy
±1 % rdg + 2 Digits
Maximum Frequency
60MHz
Battery Life
300h
Maximum Operating Temperature
50°C
Height
164mm
Length
82mm
Weight
522g
Safety Category Level
CAT IV
Safety Category Voltage
600V
Battery Type
Alkaline
Country of Origin
Taiwan, Province Of China
Product Details

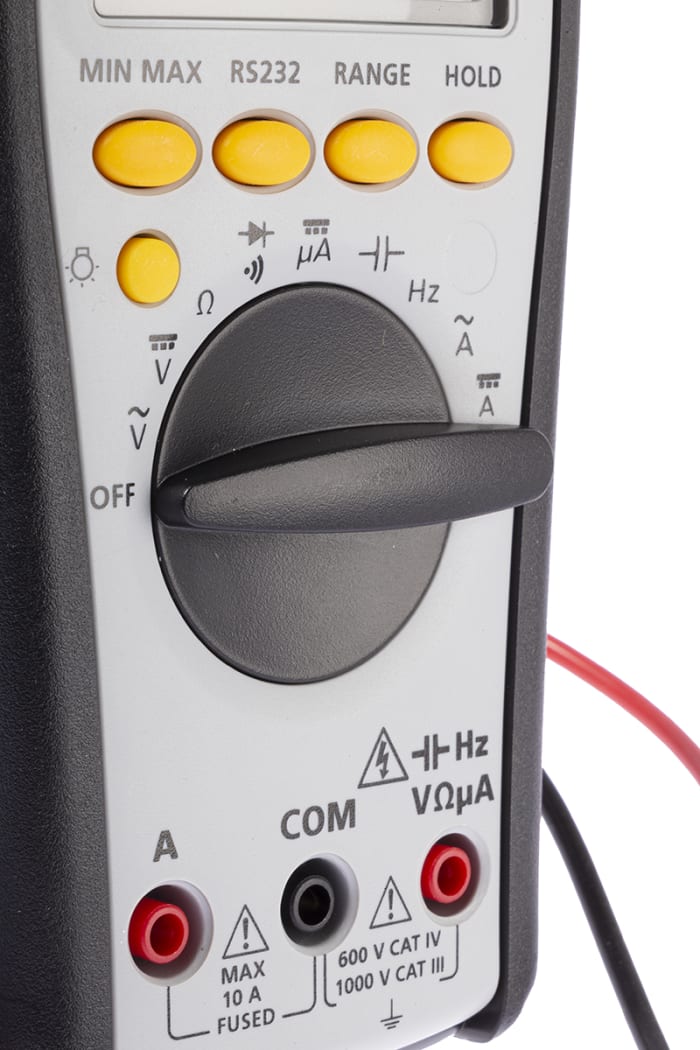

The Megger digital multimeter is a general-purpose multimeter suitable for electrical and heating engineers. The additional features make the meter useful for a wide range of applications. The instrument offers AC and DC voltage, current measurement as well as resistance, frequency and capacitance ranges. The AVO710 meter has simplified functions that avoid continuous reference to the user guide. The test leads included with the AVO410 have GS38 compliant shrouded tips. When first selected, all the functions are auto-ranging.
Stock information temporarily unavailable.
Price on asking
Calibration type
No Calibration
1
Price on asking
Stock information temporarily unavailable.
Calibration type
No Calibration
1
