Technical Documents
Specifications
Brand
MartindaleProduct Type
Socket Tester
Voltage
415V
Current
32A
Earth Loop Impedance Test
Yes
Number of Pins
5
Wiring Check
Yes
Minimum Operating Temperature
-10°C
Power Source
Mains
Model Number
PC105/32
Maximum Operating Temperature
40°C
Height
54mm
Length
131mm
Weight
292g
Standards/Approvals
RoHS
Width
94mm
Safety Category Level
CAT III
Safety Category Voltage
300V
Product Details

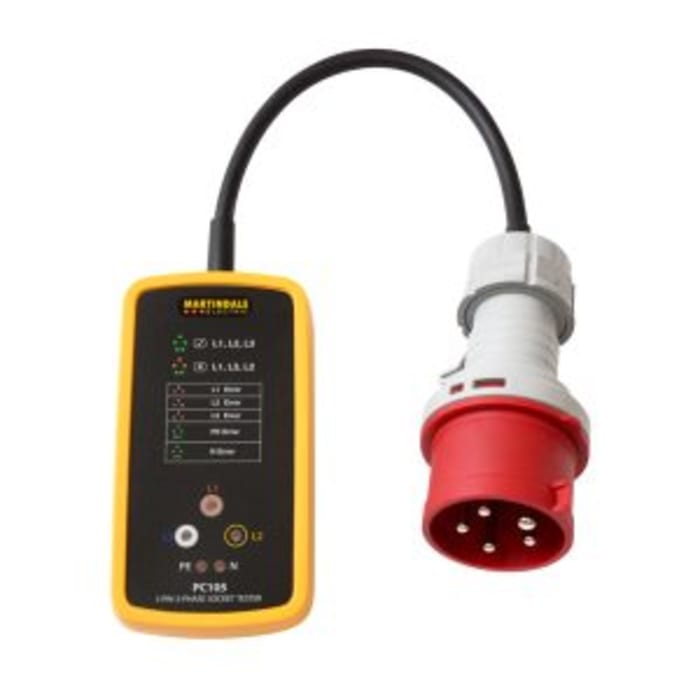

The Martindale 3-phase industrial socket tester is a state-of-the-art device with a current rating of 32AC and detecting voltage ranging between 380VAC and 415VAC. It checks for incorrect wiring, phase presence, PE presence, and neutral presence. This device includes a socket for connection to compatible sockets, attached via a cable to the main body of the tester.
Stock information temporarily unavailable.
€ 133.62
€ 133.62 Each (Exc. VAT)
Calibration type
No Calibration
1
€ 133.62
€ 133.62 Each (Exc. VAT)
Stock information temporarily unavailable.
Calibration type
No Calibration
1
