Technical Documents
Specifications
Brand
LorlinProduct Type
Rotary Switch
Series
CK
Contact Configuration
SPST
Switch Contact Current
150mA
Number of Positions
12
Housing Material
Polyamide
Depth
27.5mm
Number of Poles
1
Maximum AC Voltage
250V ac
Width
27.5mm
Maximum DC Voltage
24V dc
Minimum Operating Temperature
-30°C
Mount Type
Panel
Maximum Operating Temperature
85°C
Diameter
27.5mm
Standards/Approvals
RoHS
Terminal Type
Solder Tab
Height
59.1mm
Illuminated
No
Angle of Throw
90 °
Mechanical Life
10000Cycles
Country of Origin
United Kingdom
Product Details

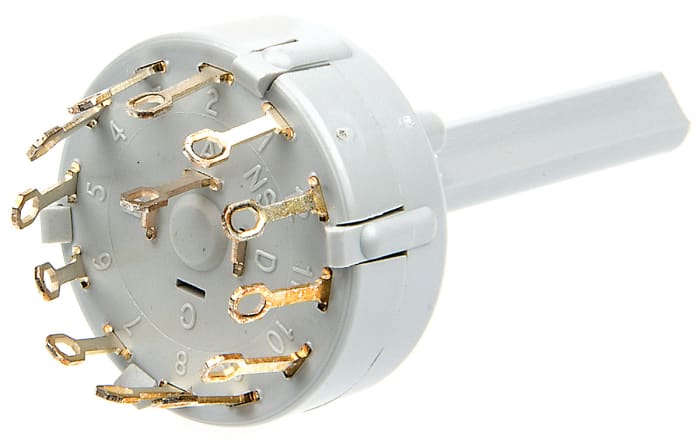

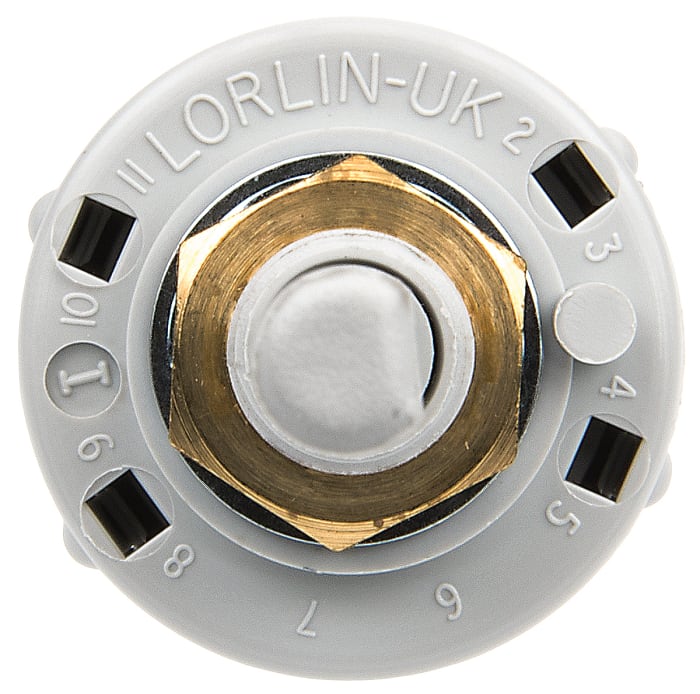

A selection of Lorlin CK rotary switches with various switch configurations.
