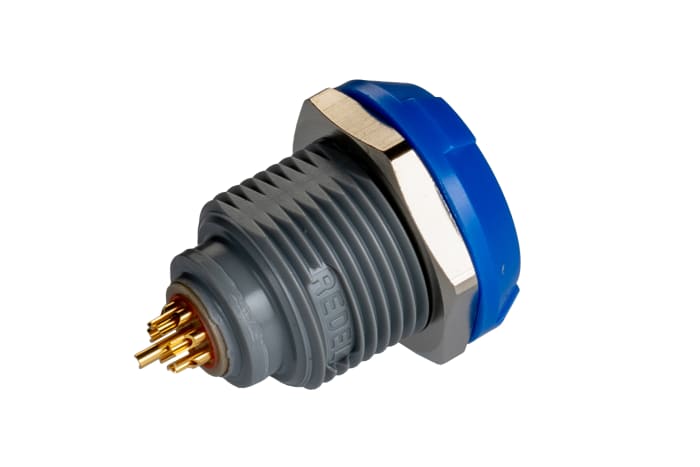

LEMO Circular Connector, 8 Contacts, Panel Mount, Socket, Female, IP50, Redel P Series
Technical Document
Specifications
Brand
LemoProduct Type
Circular Connector
Number of Contacts
8
Mount Type
Panel Mount
Current
5A
Plug/Socket
Socket
Contact Gender
Female
IP Rating
IP50
Series
Redel P
Orientation
Straight
Voltage
500.0 V
Termination Type
Solder
Mating Type
Keyed
Shell Size
1
Minimum Operating Temperature
-50°C
Maximum Operating Temperature
150°C
Housing Material
Polymer
Standards/Approvals
No
Contact Plating
Gold over Nickel
Contact Material
Copper
Country of Origin
Switzerland
Product details
Chassis Sockets
Redel (Plastic)
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 24.18
€ 24.18 Each (Exc. VAT)
1
€ 24.18
€ 24.18 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 24.18 |
| 5 - 24 | € 22.22 |
| 25 - 49 | € 20.57 |
| 50+ | € 18.14 |
