Technical Documents
Specifications
Brand
LascarProduct Type
Data Logger
Model Number
Wireless Alert CM
Number of Channels
1
Measurement Parameters
Volt-free Contact
Interface Type
WiFi
Data Logger Type
Wireless
Power Source
Battery
IP Rating
IP5X
Minimum Operating Temperature
-18°C
Maximum Operating Temperature
54°C
Height
22mm
Length
69mm
Hazardous Area Certification
No
Standards/Approvals
No
Width
32mm
Display Type
LCD
Alarm
Yes
Battery Type
Alkaline
Battery Life
2year
Country of Origin
United Kingdom
Product Details

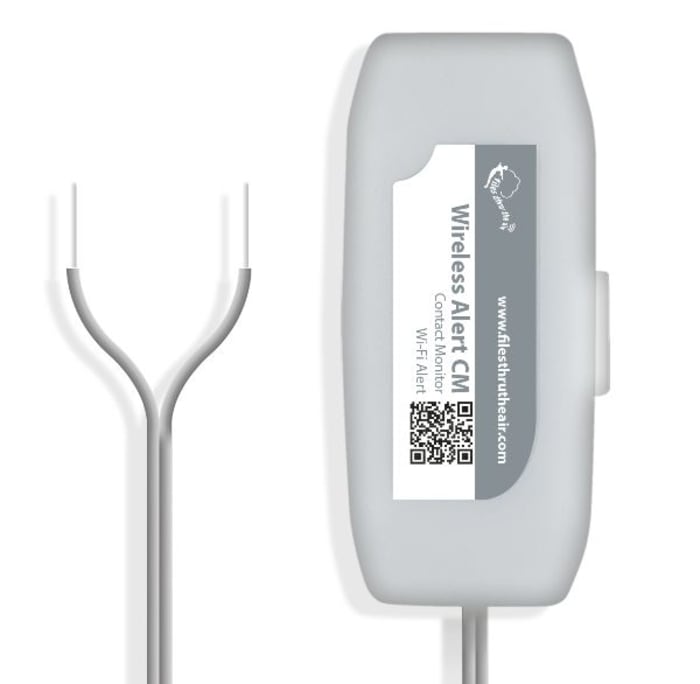

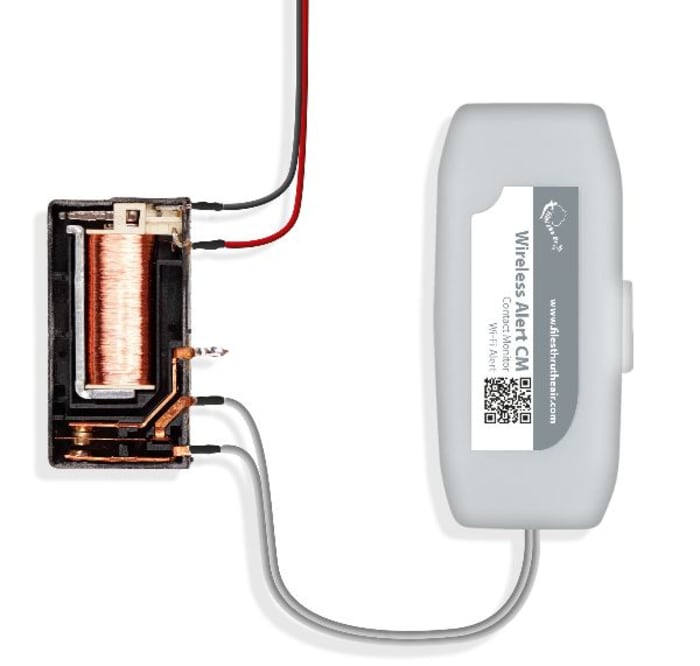

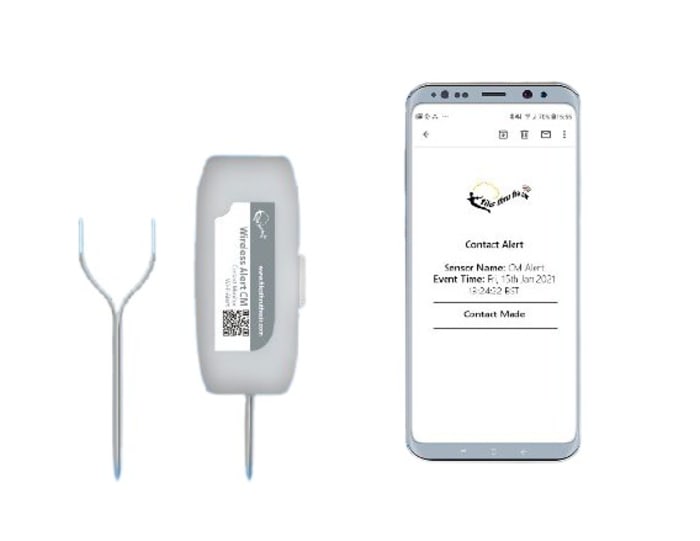

Introducing the Wireless Alert CM, a battery powered volt-free contact sensor. This device monitors whether a volt-free contacts, such as a relay or a volt-free switch is open or closed. The device will then automatically send notification emails to a user-selected email address of an event. Your devices body can be secured in position using the adhesive pad suppled and is provided with a 1.5 m cable with bare ends, ready to connect to your equipment switch.
Configure delays (between 1 minute and 12 hours) whereby the contact must remain opened or closed for a certain period of time before an alert is sent. In addition to this, the devce can send a scheduled summary detailing a number of alert events, percentage of contact open and closed time and cuttent battery level.
Supplied with a sticky pad for wall mounting
Stock information temporarily unavailable.
€ 43.47
€ 43.47 Each (Exc. VAT)
1
€ 43.47
€ 43.47 Each (Exc. VAT)
Stock information temporarily unavailable.
1
