Technical Documents
Specifications
Brand
LascarProduct Type
Data Logger
Model Number
EL-USB-3
Accuracy
±1 %
Number of Channels
1
Measurement Parameters
Voltage
Interface Type
USB
Data Logger Type
Voltage
Power Source
Battery
Minimum Operating Temperature
-35°C
Maximum Operating Temperature
80°C
Length
98mm
Hazardous Area Certification
No
Standards/Approvals
No
Display Type
LCD
Alarm
Yes
Number of Readings per Channel
32510
Battery Type
AA
Battery Life
3year
Country of Origin
China
Product Details

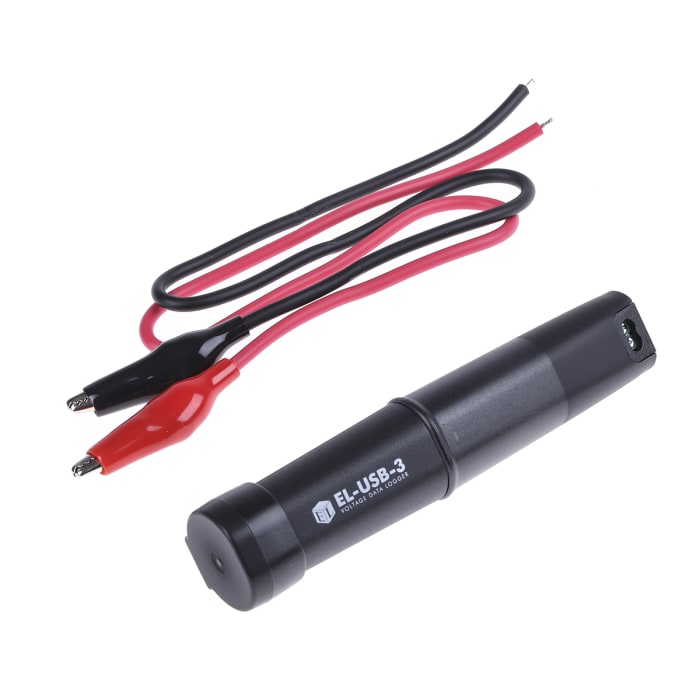

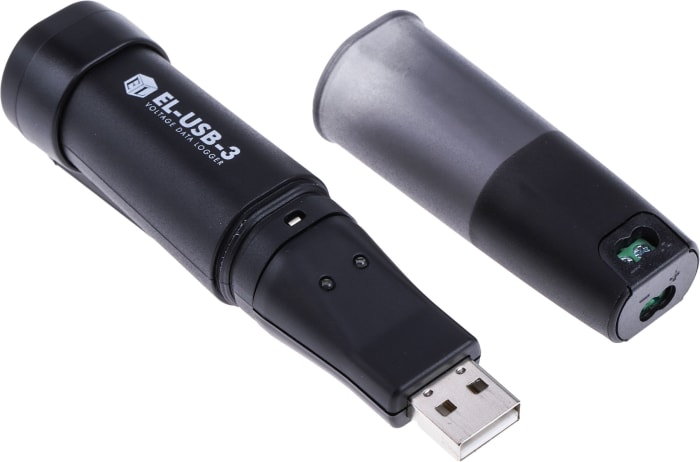

The standalone EL-USB-3 data logger from Lascar measures and stores more than 32,000 voltage readings from power supplies, sensors and other sources over a 0 to 30V d.c. range at a resolution of 50 mV d.c.
Users can easily set up their logger and view downloaded data by simply plugging their unit into a PC's USB port. Using the free EasyLog software available to download, data can be graphed, printed and exported to other applications for detailed analysis.
Supplied with 1/2 AA battery and wall mount clip.
Stock information temporarily unavailable.
€ 72.33
€ 72.33 Each (Exc. VAT)
1
€ 72.33
€ 72.33 Each (Exc. VAT)
Stock information temporarily unavailable.
1
