Technical Documents
Specifications
Brand
LascarProduct Type
Data Logger
Model Number
EL-USB-1-LCD
Accuracy
±0.5°C, ±0.5 °C
Number of Channels
1
Measurement Parameters
Temperature
Interface Type
USB
Data Logger Type
Temperature
Power Source
Battery
IP Rating
IP67
Minimum Operating Temperature
-35°C
Maximum Operating Temperature
80°C
Length
25mm
Hazardous Area Certification
No
Standards/Approvals
REACH Regulation (EC) No 1907/2006
Width
120mm
Display Type
LCD
Alarm
Yes
Number of Readings per Channel
32510
Battery Type
AA
Battery Life
2year
Product Details

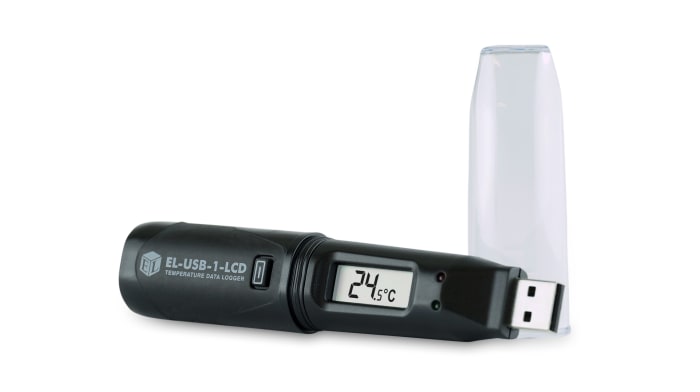

The Lascar EL-USB-1-LCD standalone data logger measures and stores over 16,000 temperature readings between -35°C and 80°C (-31°F to 176°F) with a resolution of 0.5°C (0.5°F). The high contrast LCD can show a variety of temperature information. At the touch of a button, the user can cycle between the current, maximum and minimum stored values for temperature. The user can easily set up the logger and view the downloaded data by plugging the data logger into your PCs USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.
Supplied with
1/2 AA battery and wall mount clip
