Technical Documents
Specifications
Brand
LascarProduct Type
Data Logger
Model Number
EL-CC-1
Accuracy
±0.5°C, ±0.5 °C
Number of Channels
1
Measurement Parameters
Temperature
Interface Type
USB
Data Logger Type
Temperature
Power Source
Battery
IP Rating
IP67
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
60°C
Length
67mm
Hazardous Area Certification
No
Standards/Approvals
No
Width
48mm
Display Type
LCD
Alarm
Yes
Number of Readings per Channel
32600
Battery Type
Non-Replaceable
Battery Life
1year
Country of Origin
China
Product Details

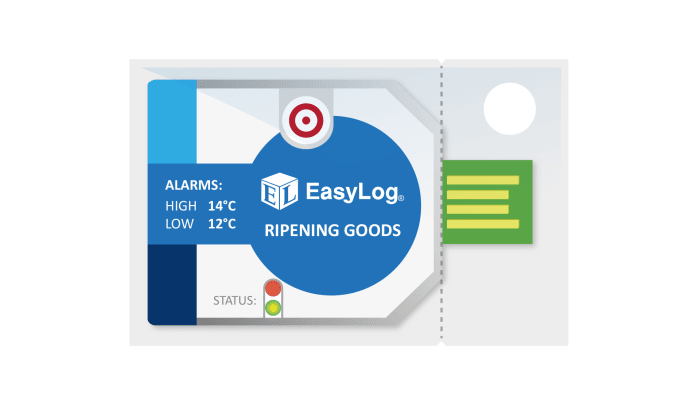

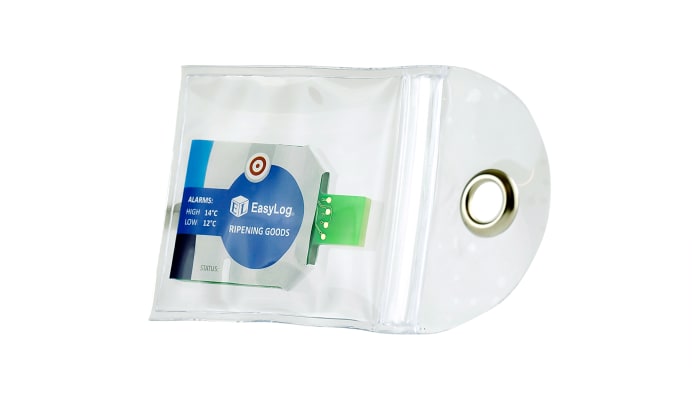

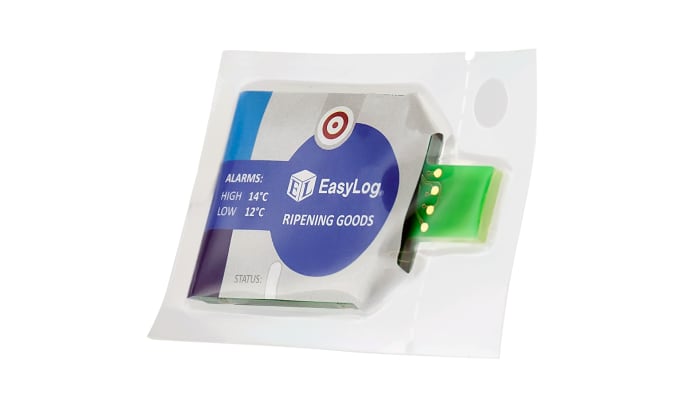

Lascar EL-CC-1 data loggers are cost-effective, multi-use monitoring instruments for use at all stages of the cold chain process. There is a choice of 3 models: chilled goods, EL-CC-1-001 ( 910-7068 ) alarms high 8 °C, low 2 °C; frozen goods, EL-CC-1-002 ( 910-7062 ) alarms high -16 °C, low -20 °C; ripening goods EL-CC-1-003 ( 910-7071 ) alarms high 14 °C, low 12 °C. Each logger comes pre-configured for use in its particular application - users simply press the button to start logging. During a logging session, pressing the button will light up the status LEDs to give quick indication of whether temperature has exceeded an alarm condition at any point. When a session is completed, the user tears open the IP67-rated plastic wallet to reveal the USB connector and plugs this into a PC. Then the freely available EasyLog CC software for Windows is used to download and graph the data, following which the logger is primed for its next use. EL-CC-1 applications include transportation, fridge/freezer monitoring, food & drink, building & site monitoring, HVAC.
EasyLog CC software is freely available for use with the Lascar EL-CC-1 range of cold chain data loggers. It is compatible with Windows XP, 7, 8 & 10. It is not compatible with Mac or Linux. Link to software download https://www.lascarelectronics.com/software/easylog-cold-chain/
Measurement leads and wall mount clip
