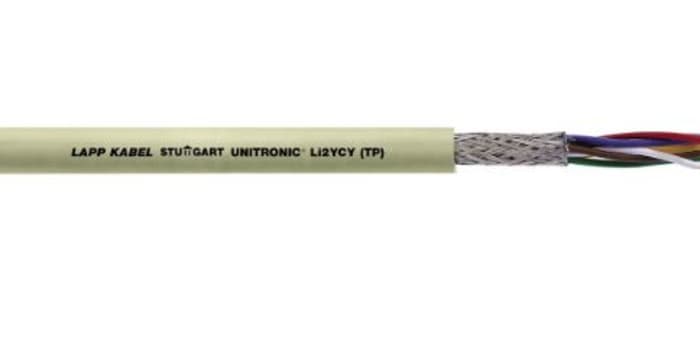

Lapp Unitronic Series Data Cable, 1 Pairs, 0.34 mm², 50 m, Grey Sheath Polyvinyl Chloride

LAPP Data Cable, Li2YCY Type, 22 AWG - UNITRONIC Series - 0031335

Wiring a data system and need to minimise electrical interference? Block out crosstalk in a trice with this data cable from LAPP. It features one twisted pair made of two stranded bare copper cores that are shielded by tinned-copper braiding, for reliable signal transfer. The PVC outer sheath is resistant to moisture, so it keeps its head above water in damp areas. This cable performs best in a fixed installation, but can take occasional flexing.

Features & Benefits

• 100Ω characteristic impedance for lossless transmission
• 0.34mm² cross-section and 5.8mm outer diameter, so it fits into small spaces
• Flame-retardant sheath protects people and property in the event of fire

Applications

• Computer networking
• Telecommunication systems
• Medical electronics
• Diagnostic equipment

What's the wire's operating temperature range?

In fixed installations, the wire's operating temperature range is -40°C to +80°C, so it's suitable for use in harsh environments.
