Kubler 3501 Series Incremental Encoder 28V

Name: Kubler 3501 Series Incremental Encoder 28V
Brand: Kubler
SKU: 4476192
Availability: LimitedAvailability

RS Stock No.: 447-6192Brand: KublerManufacturers Part No.: D5.3501.A221.0000Distrelec Article No.: 164-90-401

Technical Documents

Specifications

Brand

Product Type

Incremental Encoder

Series

3501

IP Rating

IP50

Maximum Supply Voltage

28V

Overall Depth

40mm

Overall Height

40mm

Standards/Approvals

RoHS

Overall Width

55mm

Maximum Operating Temperature

50°C

Country of Origin

Germany

Product Details

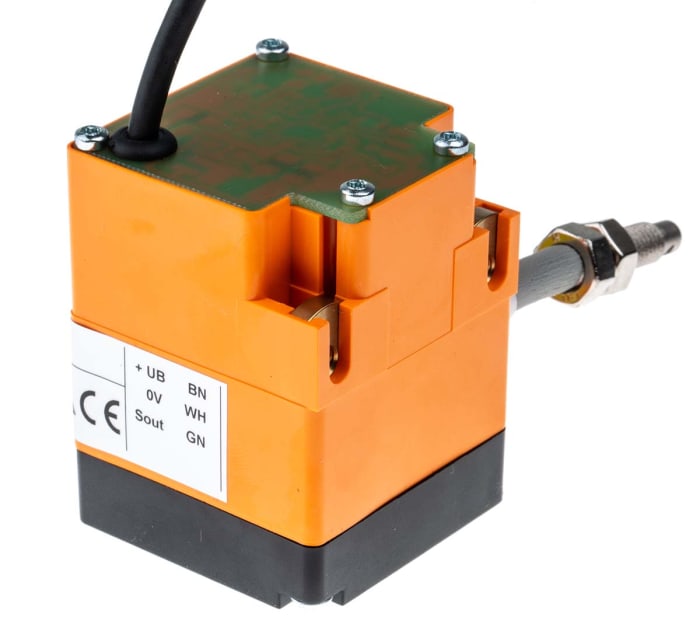

Miniature cable pull sensor with analogue output
For length or distance measurement in machine and
plant construction
Tried and proven, manageable solution
Converts linear movements by extending and retracting a cable into rotational motions
Compact
Measurement length up to 1000 mm
Robust design
Simple evaluation with digital display via
analogue signal
Low-cost alternative to the rotary transducer design
Current or voltage output
Dimensions: 74 x 43 x 40 mm
Steel cable, plastic-coated
Power supply 15 V DC to 28 V DC
Potentiometer

Miniature cable pull sensor with analogue output
For length or distance measurement in machine and
plant construction
Tried and proven, manageable solution
Converts linear movements by extending and retracting a cable into rotational motions
Compact
Measurement length up to 1000 mm
Robust design
Simple evaluation with digital display via
analogue signal
Low-cost alternative to the rotary transducer design
Current or voltage output
Dimensions: 74 x 43 x 40 mm
Steel cable, plastic-coated
Power supply 15 V DC to 28 V DC
Potentiometer
