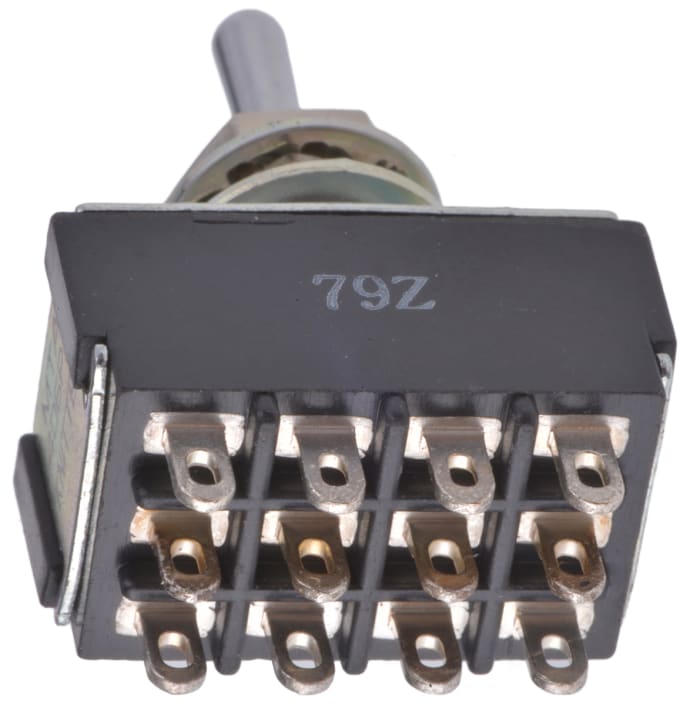

KNITTER-SWITCH Toggle Switch, Panel Mount, On-On-On, 4PDT, Solder Terminal
Technical Document
Specifications
Brand
KNITTER-SWITCHContact Configuration
4PDT
Switch Operation
On-On-On
Contact Current Rating
4 A @ 30 V dc
Mounting Type
Panel Mount
Terminal Type
Solder
Panel Cut Out Diameter
6.2mm
Actuator Length
10.5mm
Contact Material
Silver Plated Copper Alloy
Contact Resistance
<0.01Ω
Panel Cut Out Size
6.2mm
Minimum Operating Temperature
-45°C
Operating Temperature Range
-45 → +140°C
Mechanical Life
300000Operations
Maximum Operating Temperature
+140°C
Country of Origin
China
Product details
Knitter Switch Miniature Toggle Switches - MTA Series
2 and 3 position double pole panel mount toggle switches
Biased and non biased options
Silver contacts
Chrome plated brass actuator and Diallyl Phthalate (UL 94 V-0) case
Miniature Lockable Toggle Switches
Approvals
UL E187490
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
€ 20.32
Each (Exc. VAT)
1
€ 20.32
Each (Exc. VAT)
1
Buy in bulk
| Quantity | Unit price |
|---|---|
| 1 - 49 | € 20.32 |
| 50 - 99 | € 18.53 |
| 100 - 249 | € 16.62 |
| 250 - 499 | € 15.40 |
| 500+ | € 13.74 |
