Technical Documents
Specifications
Brand
KnipexProduct Type
Crimp Tool
Sub Type
MultiCrimp
For Use With
With 3 interchangeable dies set
Handle Type
Comfort Grip
Cutting Capacity
1 mm
Height Safe
No
Series
MultiCrimp®
Overall Length
250mm
Standards/Approvals
DIN 46235, DIN 46341, DIN 46234, DIN 46267
Minimum Wire Size mm²
0.25
Minimum Wire Size AWG
24AWG
Maximum Wire Size mm²
6
Maximum Wire Size AWG
10AWG
Country of Origin
Germany
Product Details

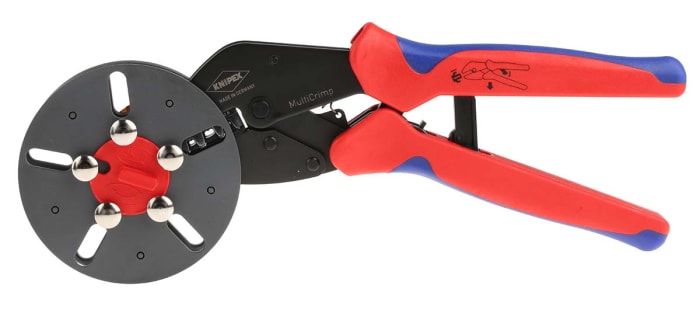

This portable hand crimping tool is designed to crimp connectors onto bare wires, the crimping dies can be changed quickly and easily without additional tools. It is the only tool with the most common crimping applications in a dispenser holster, saving time and space while working. This crimping tool offers the same services as five crimping pliers in one tool.
On the holster: The die is selected by turning the red knob in the centre of the holster and matching the notch with the desired die;On the pliers: Release the small tab (between the arms of the pliers) which allows to block the opening / closing between the jaws of the pliers;Insert the head of the pliers to get the desired die;Once the die has been inserted into the pliers, push the chrome button on the left to unlock the die.;To reposition the die in the holster, we follow the same steps and once the die is inserted in its space, we release the die by pulling the pliers.;The quick change crimping dies are inserted in the front of the crimping tool with the locking system developed for this crimping tool which connects the dies to the tool without any play between teeth or friction, making changes easier. This feature ensures that the user does not waste time.
Stock information temporarily unavailable.
€ 250.74
€ 250.74 Each (Exc. VAT)
1
€ 250.74
€ 250.74 Each (Exc. VAT)
Stock information temporarily unavailable.
1
