Technical Documents
Specifications
Brand
KingbrightProduct Type
LED Display
Display Type
7 Segment
Number of Characters
4
LED Colour
Red
Number of Segments
7
Dominant Wavelength
630nm
Character Width
8mm
Character Height
14.2mm
Common Connection
Anode
Mount Type
Through Hole
External Width
19mm
External Height
8.1mm
External Depth
50.3mm
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Luminous Intensity
24mcd
Colour of Face
Grey
Standards/Approvals
RoHS
Forward Voltage
2V
Power Dissipation
75mW
Decimal Orientation
Right Side
Forward Current
30mA
Country of Origin
China
Product Details

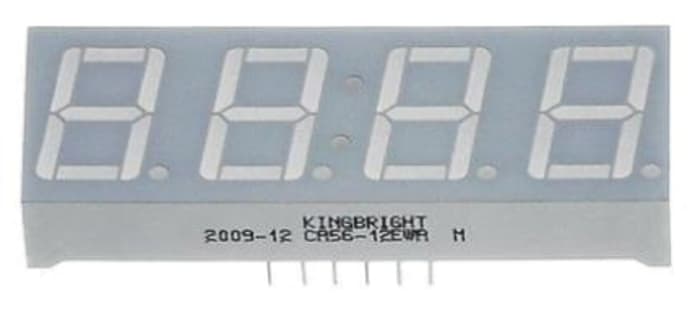

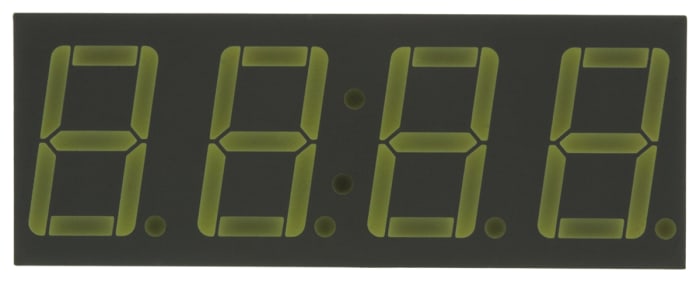

A range of quad-digit 7-segment LED displays from Kingbright. In addition to the four digits plus decimal points, most of these displays feature a colon between the two central digits allowing them to correctly display time in 12 or 24-hour format. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.
Stock information temporarily unavailable.
€ 6.16
€ 6.16 Each (Exc. VAT)
1
€ 6.16
€ 6.16 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 6.16 |
| 10 - 49 | € 4.89 |
| 50 - 99 | € 4.76 |
| 100 - 199 | € 4.65 |
| 200+ | € 4.51 |
