Keithley 6517B/E Bench Digital Multimeter
Technical Document
Specifications
Brand
KeithleyProduct Type
Multimeter
Multimeter Type
Bench
Resistance Resolution
10Ω
Model Number
6517B/E
Display Type
Digital
Functions Measured
DC Voltage, AC Current, DC Current, Resistance, AC Voltage, Temperature
Maximum DC Voltage Measurement
200V
True RMS
No
DC Current Accuracy
±1 % rdg + 30 Digits
AC Voltage Accuracy
±0.06 % rdg + 3 Digits
AC Current Accuracy
±1 % rdg + 30 Digits
DC Voltage Accuracy
±0.06% rdg + 3 Digits
DC Voltage Resolution
10 μV
Power Source
Battery, Mains
Minimum Operating Temperature
0°C
Maximum Operating Temperature
50°C
Width
214 mm
Height
90mm
Length
369mm
Weight
5.4kg
Standards/Approvals
No
Country of Origin
China
Product details

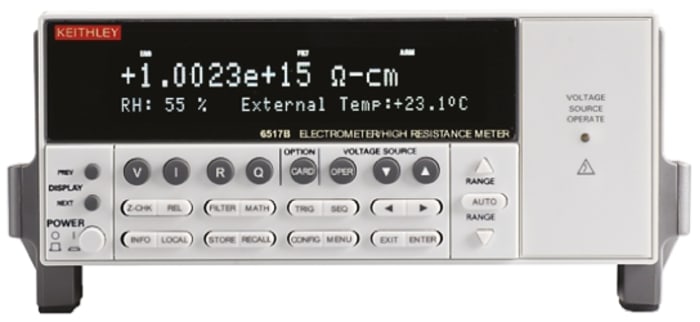

Keithley 6517B Electrometer/High Resistance Meter
The Keithley 6517B Electrometer is a high resistance 5-digitmultimeter that is the worldwide research laboratory standard for sensitive measurements. 6517B provides reliable measurements of current levels down to 10aA, charge levels down to 1 fC including the highest resistance measurements available. The multimeter is capable of measuring the largest voltage range to 200 V with an input impedance exceeding 200 TΩ. Its low noise and drift performance make it ideal for research on single electron devices, highly resistive nanowires and nanotubes, polymers, and electrochemical applications.
Features and Benefits:
Measures resistances up to 1016
Ω
1fA → 20mA current measurement range
<20μV burden voltage on lowest current ranges
200TΩ input impedance
<3fA bias current
Up to 425 readings/second
0.75fA p-p noise
Built-in ±1kV voltage source
Unique voltage reversal method for high resistance measurements
Additional Benefits:
Compete hardware-software solution for ASTM D257 high resistivity measurements
Resistivity test fixture
KickStart high resistivity measurement application
Voltage measurements up to 200 V with 200 Ω input impedance
Alternating polarity voltage sourcing
Measurement method for high resistance measurements
Built-in test sequences for 4 different device characterization tests
Surface and volume resistivity
Surface insulation resistance
Voltage sweeping
GPIB and RS-232 interfaces
Typical Applications:
Nanomaterial characterization
Polymer electrical characterization
Beam measurements
Dosimetry
Device leakage current measurements
Optoelectronic detector characterization
Volume and surface resistivity
What Is Included?
Low noise Triax cable
3-Slot Triax to Alligator clips
2 m (6.6 ft)
Supplied with
low noise triax cable 3-slot triax to alligator clips 2m (6.6ft), safety high voltage dual test leads, thermocouple bead probe, interlock connector
Standards
EMC Conforms to european Union Directive 89/336/EEC, EN 61326-1.
Safety Conforms to european Union Directive 73/23/EEC, EN 61010.1.
Stock information temporarily unavailable.
€ 13,754.56
€ 13,754.56 Each (Exc. VAT)
1
€ 13,754.56
€ 13,754.56 Each (Exc. VAT)
