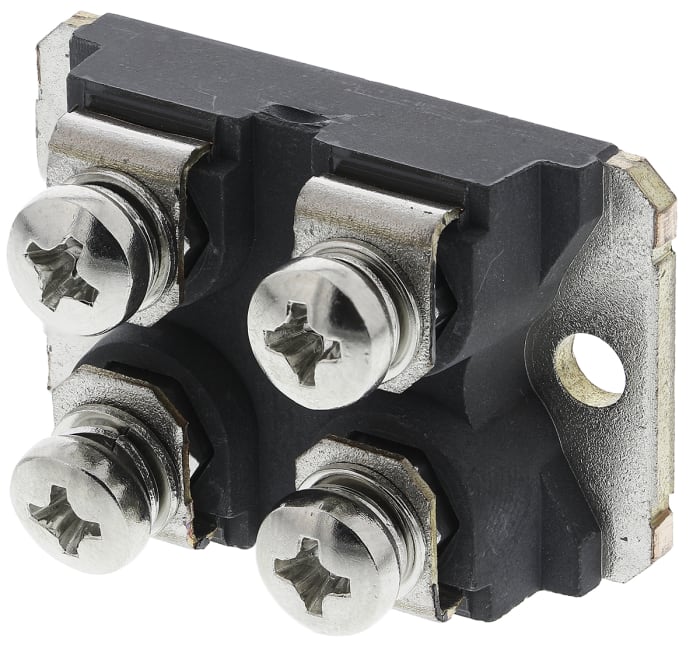

IXYS Bridge Rectifier Module, 1200 V 320 A, 4-Pin Single
Technical Document
Specifications
Brand
IXYSProduct Type
Bridge Rectifier Module
Peak Reverse Repetitive Voltage Vrrm
1200V
Mount Type
Panel
Package Type
SOT-227
Number of Phases
1
Pin Count
4
Configuration
Single
Maximum Operating Temperature
150°C
Forward Current If
40A
Minimum Operating Temperature
-40°C
Peak Non-Repetitive Forward Surge Current Ifsm
320A
Peak Forward Voltage Vf
1.15V
Width
25.07 mm
Peak Reverse Current Ir
300μA
Height
9.6mm
Length
38.3mm
Standards/Approvals
No
Series
VBO40
Automotive Standard
No
Product details
Bridge Rectifier Module with Screw Terminals, VBO40 Series, IXYS
Package with Direct Copper Bonding (DCB) isolated
Very low leakage current
Very low forward voltage drop
Improved thermal behaviour
Approvals
UL E72873
Bridge Rectifiers - IXYS
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
