Igus chainflex CF240 Data Cable, 5 Cores 0.34mm² 22 AWG, Screened, 50 m, Grey Thermoplastic Elastomer Sheath

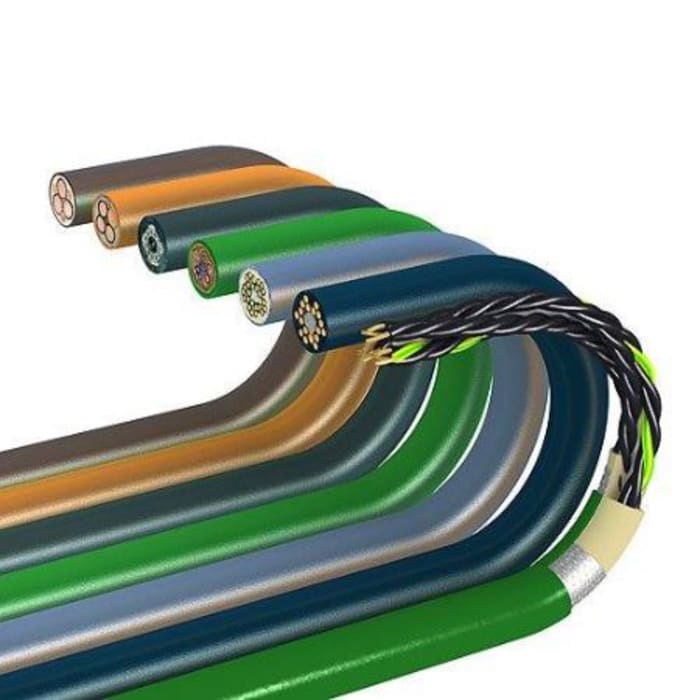

The Igus chainflex cables from igus are designed with one message in mind, “cost down, life up”. With our TPE jacket material, we provide products that can cope with highly demanding applications adopting very high abrasion resistance whilst providing excellent protection levels when faced with harsh chemical and oil-based environments. Our patented bundle design ensures small bend radius figures which make chainflex cables ideal for use in echain (cable carrier), flexible and fixed applications.

• Small bend radii, ideal for space saving installation

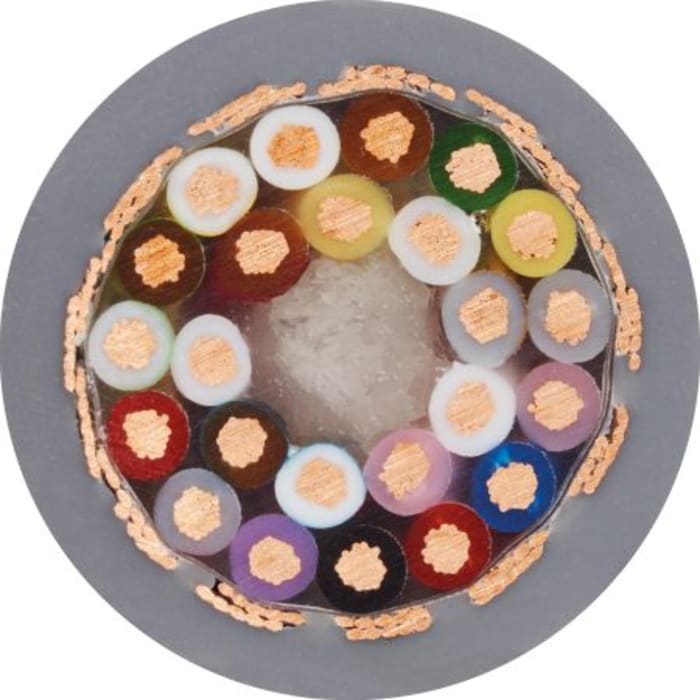

• Patented core bundled design to ensure long lasting lifetime in dynamic applications
• Oil resistant Class 4 which supports almost unlimited oil + bio-oil resistance
• Low angled braided screen optimised for use in continuous flexing applications
• 300/500v rated for use in control cable applications
• Wide temperature ranges from -55°c to +100°c depending on application type
• Guaranteed service life for use in echains, minimise risk of unplanned downtime
• Long travel rated for reliable use up to 400m in echains®

Layered data cables are used in a wide variety of applications where EMC/EMI/Cross talk is an issue and provides a more cost-effective solution when compared to a twisted pair (TP) data cable, if this level of performance is not required . Core sizing ranges from 0.14mm²-0.34mm², with core identification using DIN 47100 colour coding system. CF240 is designed for heavy duty applications where the influence of oils is relatively light. Preferably for use on indoor applications or for outdoor applications at above freezing temperatures. Typical application areas include; storage and retrieval units, high-bay warehousing, machining units, packaging machines, quick handling, indoor cranes.

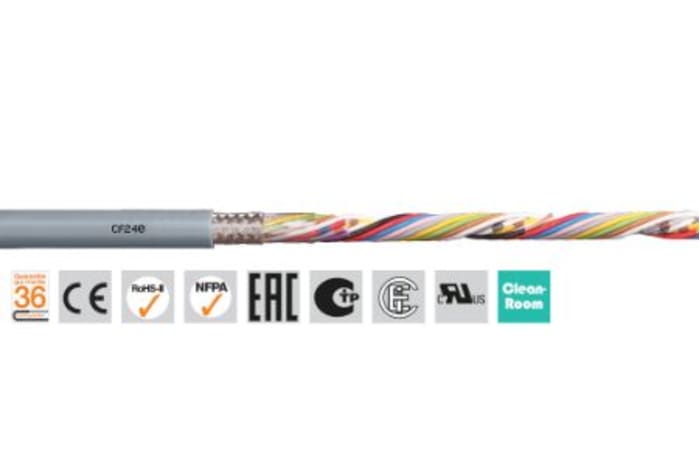

• Oil-resistant (following DIN EN 50363-4-1).
• Flame Retardant according to IEC 60332-1-2, CEI 20-35, FT1, VW1.
• Silicone-free following PV 3.10.7 – status 1992.
• UL/CSA style 10493 and 2464.
• NFPA following NFPA 79-2018, chapter 12.9.
• ROHS-II (Lead-free) following 2011/65/EC.
• Clean room according to ISO Class 1.
• CE following 2014/35/EU.
• Note
• chainflex® guarantee, now verified by UL - all igus flexible cables are thoroughly tested in our 2,750m laboratory with reliable specialist equipment where we have over 600 tests running simultaneously, to confidently provide our 36-month guarantee.
