Technical Documents
Specifications
Brand
IDEMProduct Type
Solenoid Interlock Switch
Actuator Included
No
Series
KLP
Actuator Type
Standard Coded
Safety Contacts
2 NO
Conduit Entry
M20
Terminal Type
Screw
Number of Auxiliary Contacts
2
Power to Lock/Unlock
Power to Unlock
Contact Current
0.5A
Contact AC Voltage
230V ac
Housing Material
Plastic
Depth
45.5mm
Length
160mm
Hazardous Area Certification
No
Standards/Approvals
IEC, EN, UL
Width
46mm
IP Rating
IP67
Supply Voltage
24V ac/dc
Country of Origin
United Kingdom
Product Details

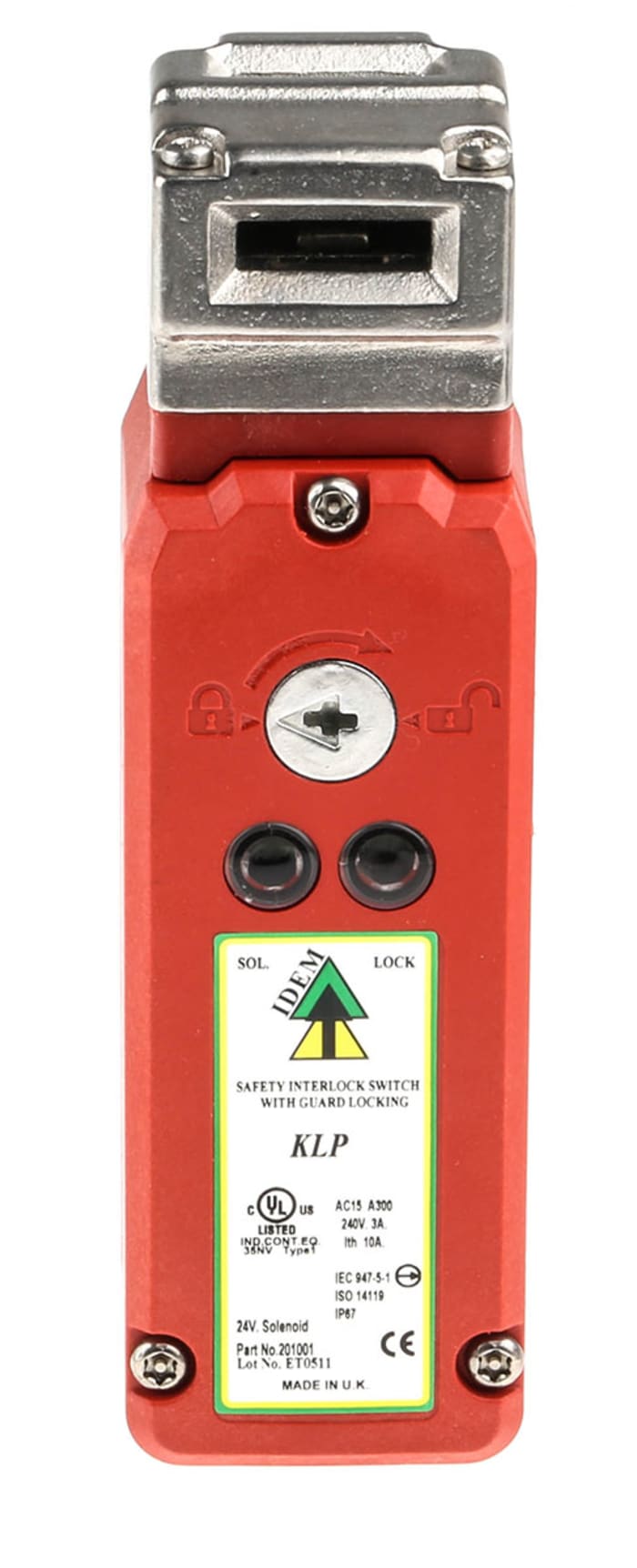

The IDEM KLP series guard locking safety interlock switch has a supply voltage rating of 24VAC/VDC. It has 2NC safety contact and 2NO auxiliary contacts. This switch fits the leading edge of sliding or hinged machine guards. It provides a locking mechanism to keep the guard closed until the hazard is removed. This switch is tongue operated with positively operated switching contacts and a strong tamper-resistant key mechanism. It provides robust position interlock detection for moving guards. This solenoid interlock switch can be used with safety timers to provide a delay before allowing the guard to open (for example machines that require a rundown). Depending on the risk assessment for the application, it can be used independently to provide positively operated contacts or used with any dual channel safety-monitoring relay.
Note
Not supplied with an actuator. Standard, flat, heavy-duty flexible and hygienic actuators are available separately. The flexible actuators are perfect for tight radius guards. The hygienic actuator is made from stainless steel with a mirror-polished finish.
Stock information temporarily unavailable.
€ 176.51
€ 176.51 Each (Exc. VAT)
1
€ 176.51
€ 176.51 Each (Exc. VAT)
Stock information temporarily unavailable.
1
