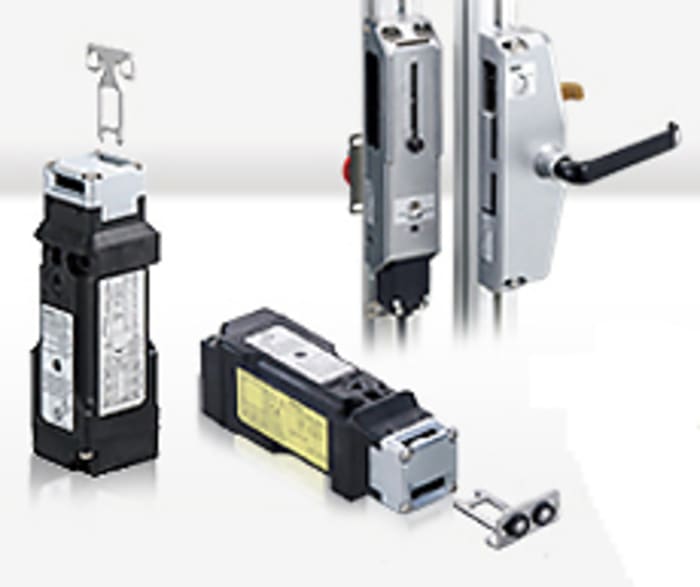

Idec HS1L Safety Interlock Switch, Keyed Actuator Included, Spring Lock

Idec Switch

The Idec HS1L series safety interlock switch has increased locking strength of 3000N and six contacts in a compact dimension housing. It is designed for applications with large machines that have heavy doors or gates. This model is equipped with a manual lock release key and an LED indicator.

Features and Benefits

• 1NC+1NC (main), 1NO/1NC (door monitor) and 2NC (lock monitor) safety contacts
• Compact in size
• Easy to wire screw terminals
• LED illumination colour is red
• M20 connection type
• No barriers on the sides of the contact terminal
• Open, closed and locked status of the door can be monitored
• Operating temperature ranges between -20°C and 55°C
• Spring lock type

Applications

• Doors

Certifications

• CCC certified
• CE certified
• cUL listed
• IP67 rated
• TUV
