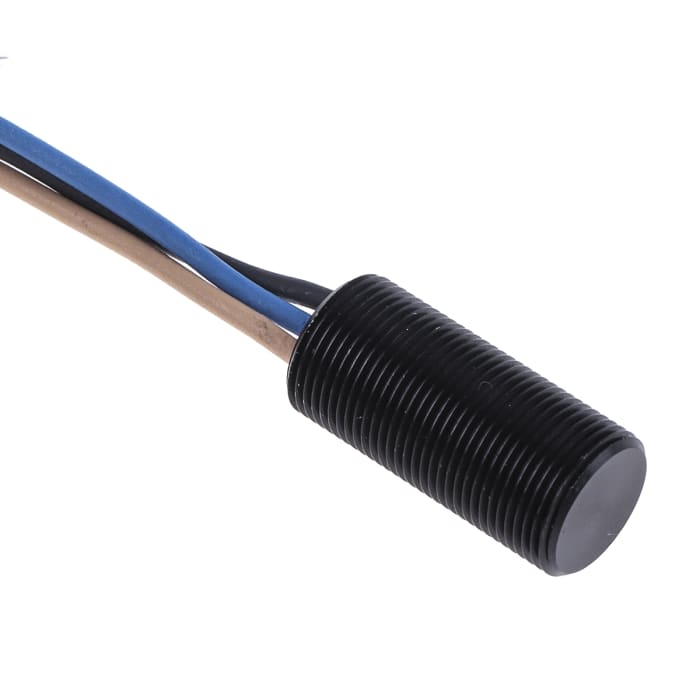

Honeywell Cable Mount Hall Effect Sensor, Digital Output, 4 → 24 V dc, Barrel Body, 30V

Name: Honeywell Cable Mount Hall Effect Sensor, Digital Output, 4 → 24 V dc, Barrel Body, 30V
Brand: Honeywell
SKU: 8223810

RS Stock No.: 822-3810Brand: HoneywellManufacturers Part No.: ZH10

View all in Hall Effect Sensors

Technical Documents

Specifications

Brand

Honeywell

Output Type

Digital

Body Style

Barrel

Mounting Style

Cable Mount

Supply Voltage

4 → 24 V dc

Terminal Type

Cable

Maximum dc Voltage

30V

Switching Current

30 mA

Switching Frequency

15 kHz

Length

25.4mm

Width

11.9mm

Dimensions

11.9 x 25.4 mm

Maximum Operating Temperature

+100°C

IP Rating

IP67

Minimum Operating Temperature

-40°C

Short Circuit Overload Protection

Yes

Housing Material

Aluminium

Product Details

Honeywell ZH10 Hall-Effect Speed Sensor

The ZH10 series hall-effect sensor has been specially designed for harsh environments and provides a durable, cost effective solution. It has been manufactured in an aluminium package, is simple to install and does not require rotational orientation.

Low cost
Omni-directional sensor to target orientation
Digital output
Small size
Low power consumption

Potential Applications:
Industrial process control
Factory automation
Rotary applications, such as pumps, rollers, mixers, fan speed measurement, transmission, spindles, gear reducer RPM, process speed, synchronization, generator set, compressor speed and dyno testing

Honeywell ZH10 Hall-Effect Speed Sensor

Low cost
Omni-directional sensor to target orientation
Digital output
Small size
Low power consumption
