Technical Documents
Specifications
Actuator Type
Leaf Lever
Product Type
Micro Switch
Terminal Type
Tab
Switch Contact Current
16A
Housing Material
Polybutylene Terephthalate
Contact Configuration
SPDT
Operating Force
0.98N
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
125°C
Microswitch Type
Standard
Contact AC Voltage
250V ac
Mechanical Life
5000000Operations
Hazardous Area Certification
No
Standards/Approvals
UL, CQC, cUL, ENEC

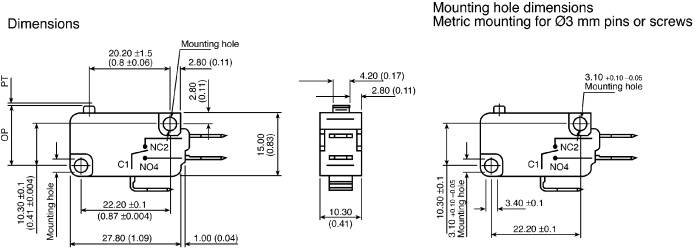

Width
10.3mm
Series
V15
Depth
10.3mm
Length
27.8mm
Country of Origin
China
Product Details
This micro switch is a Compact electromechanical device designed to detect or control positional changes in industrial systems. It operates as a single-pole double-throw contact element with a pin plunger actuator, providing a straightforward means to translate mechanical motion into electrical switching for automation, electrical and mechanical installations. The unit is housed in a thermoplastic polyester enclosure and is intended for environments requiring a small footprint and defined switching behaviour.
It operates between -25°C and 125°C, allowing use in moderately cold and elevated-temperature environments.
The housing is MADE from PBT thermoplastic polyester, providing mechanical stability and resistance to typical workshop conditions.
It carries UL, CQC, cUL and ENEC approvals, indicating conformity with multiple recognised standards.
The pin plunger actuator provides a Compact responsive Interface suited to tight mounting locations where linear actuation is required.
For waterproof Micro Switches in Honeywell's V15 series see stock number 749-6509 typically.
ENEC, UL, CQC
$ 5.00
Each (Exc. VAT)
Stock information temporarily unavailable.
$ 5.31
$ 5.31 Each (Exc. VAT)
1
$ 5.31
$ 5.31 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | $ 5.31 |
| 10 - 49 | $ 4.76 |
| 50 - 99 | $ 3.99 |
| 100 - 249 | $ 3.71 |
| 250+ | $ 3.39 |
$ 5.00
Each (Exc. VAT)
