Technical Documents
Specifications
Brand
HARWINNumber of Contacts
120
Product Type
PCB Socket
Number of Rows
4
Sub Type
Socket Strip
Pitch
2mm
Current
12A
Termination Type
Solder
Housing Material
Nylon
Mount Type
Through Hole
Orientation
Straight
Connector System
Board-to-Board
Voltage
1kV
Series
M22
Minimum Operating Temperature
-55°C
Row Pitch
2mm
Contact Gender
Female
Maximum Operating Temperature
125°C
Contact Material
Bronze
Contact Plating
Gold
Standards/Approvals
No
Product Details

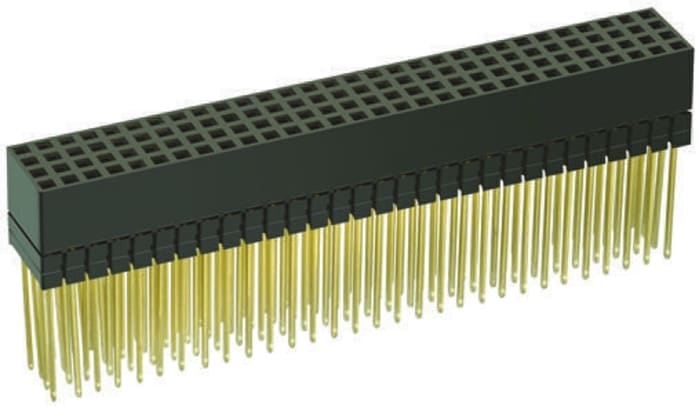

A range of bus connectors compatible with the PC104 industry standard for embedded pc applications, designed for stacking boards with a common bus. Supports PCI bus
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 18.99
€ 18.99 Each (Exc. VAT)
Standard
1
€ 18.99
€ 18.99 Each (Exc. VAT)
Stock information temporarily unavailable.
Standard
1
| Quantity | Unit price |
|---|---|
| 1 - 19 | € 18.99 |
| 20 - 74 | € 12.06 |
| 75 - 299 | € 11.73 |
| 300 - 599 | € 11.43 |
| 600+ | € 11.13 |
