HARTING Han B Range Power Connector 2, 10B

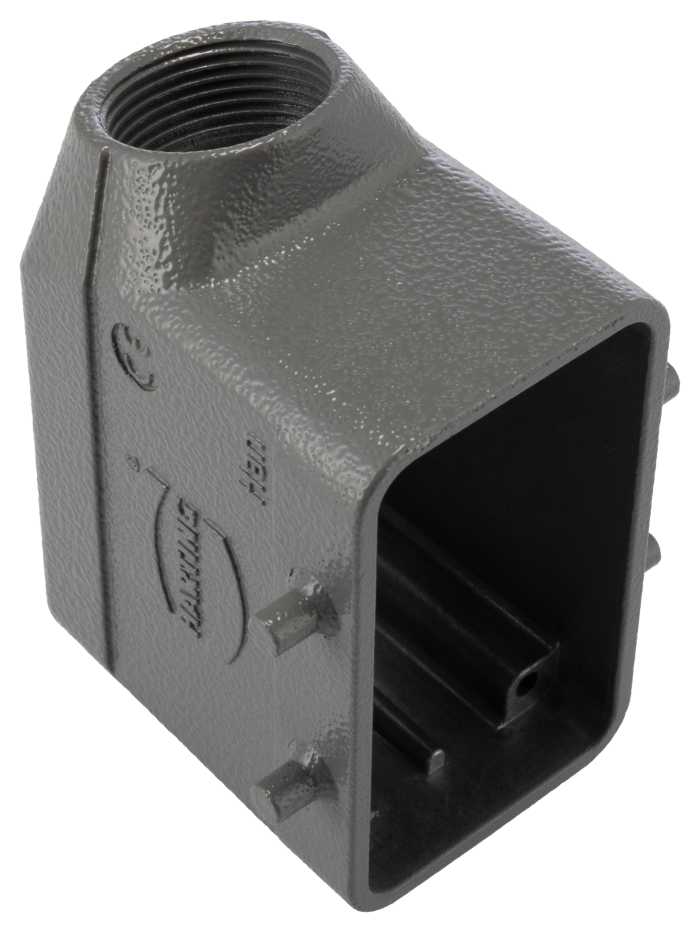

Harting Han B Series Power Connector, Die Cast Aluminium Body, Side Cable Entry Angle - 19300101521

This power connector hood provides a low-profile protective housing for industrial connectors used in automated and electrical installations. Designed for side-entry cable routing, it protects mating connector interfaces in harsh environments while enabling secure locking with dual levers. The aluminium die-cast enclosure is powder-coated and intended for applications requiring ingress protection across a range of conditions.

Features & Benefits

• IP65 IP66 IP67 ratings offer robust environmental sealing
  Double locking lever ensures vibration-resistant retention
  Rated for ≥500 mating cycles for long-term serviceability
  Operational temperature range −40 to +125°C for extreme climates
  1x M25 cable entry enables standard cable gland integration

**Applications**

• Suitable for factory automation connectors exposed to washdown
  Ideal for machine tool electrical interfaces requiring secure locking
  Used with panel-mounted receptacles in outdoor cabinets
  Can be used for power distribution modules on rail vehicles

What material resists mechanical wear and corrosion?

The hood is produced from aluminium die-cast with a powder-coated finish to improve surface durability and environmental resistance.

How does it perform under electrical enclosure standards?

It carries a 4X type rating under UL 50/50E indicating suitability for protection against corrosion and environmental exposure in specified installations.

What approvals and regulatory markers are present?

The product includes CE and DNV GL markings and is listed under specified UL and CSA files for connector housings.

How is cable entry configured for installation?

The housing provides a single side-entry cable port sized for an M25 gland to simplify conduit or cable gland attachment.

Notes

Only the Housing stock no. 114-7964 can be used with the Han E AV series.

Approvals

UL, CSA, SEV

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
