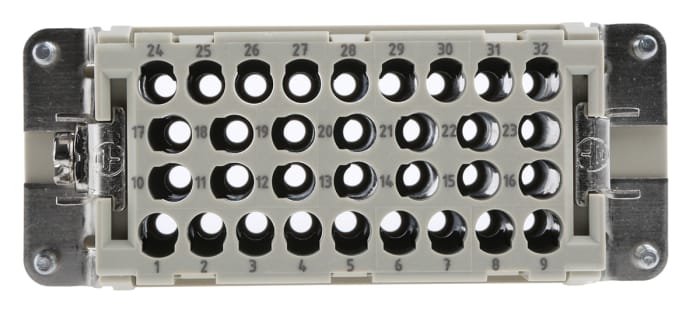

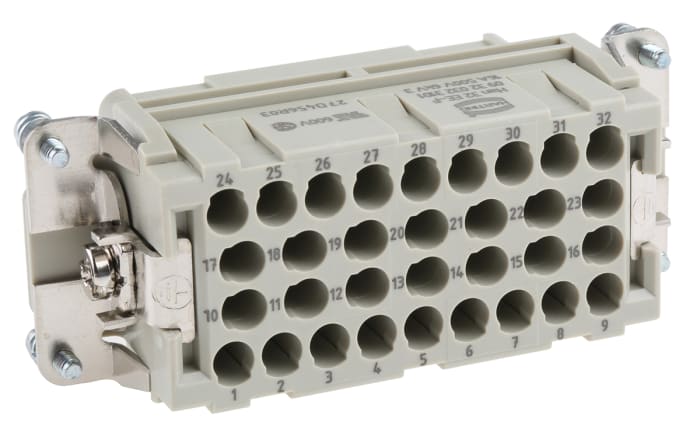

HARTING Heavy Duty Power Connector Insert, 16A, HAN EE Series Female, 32 Contacts

Crimp Inserts

• Poles: 10-46 (crimp connection)
• Contacts must be ordered separately
• Option of 1.5mm² and 2.5mm² contacts

Han® EE 16A Crimp Series

These Han® EE inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.

Approvals

UL, CSA, SEV

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection
