Technical Documents
Specifications
Brand
HartingProduct Type
Heavy Duty Power Connector Insert
Current Rating
16A
Series
Han EE
Sub Type
Connector Insert
Connector Gender
Male
For Use With
Heavy Duty Power Connector
Pole Format
32+E
Number of Rows
4
Voltage
500V
Mount Type
Cable
Number of Contacts
32
Manufacturer Size Code
16B
Standards/Approvals
IEC 60664-1
Maximum Wire Size mm²
4mm²
Contact Material
Polycarbonate
Orientation
Straight
Minimum Wire Size mm²
0.14mm²
Thread Size
M3 x 10
Country of Origin
Romania
Product Details

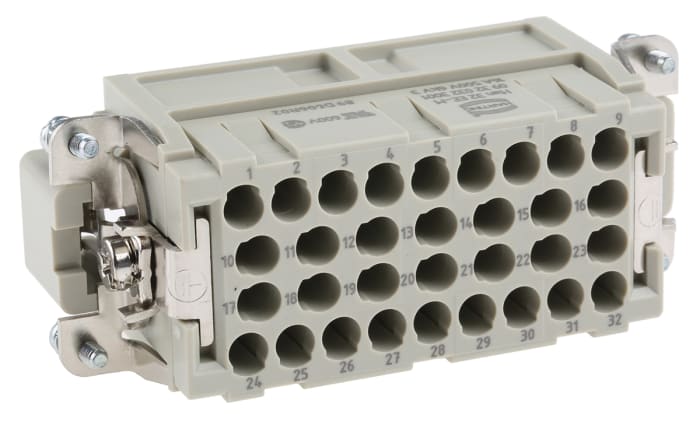

This heavy-duty power connector insert provides a robust multi-contact solution for power distribution in industrial systems. Designed as a straight, cable-mounted male insert, it accommodates a mix of conductive paths and an earth contact to support complex wiring requirements in machinery and automation installations.
It is intended for cable mounting and fits into compatible housings designed to accept cable-mounted inserts, enabling secure inline connections.
Contacts are organised across four rows, providing a compact, orderly layout for multi-conductor terminations and easing cable management.
The insert is specified for operation up to 500V and adheres to insulation coordination standards relevant to industrial electrical systems.
The contact terminals accept conductors from 0.14mm² up to 4mm², accommodating fine control wiring through to thicker power leads.
UL, CSA, SEV
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
€ 33.30
€ 33.30 Each (Exc. VAT)
1
€ 33.30
€ 33.30 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 33.30 |
| 10 - 24 | € 31.96 |
| 25 - 49 | € 30.65 |
| 50+ | € 29.30 |
