HARTING Metal Frame, HAN Modular Series Thread Size M3 4 Way, For Use With Standard Han Hoods and Housings

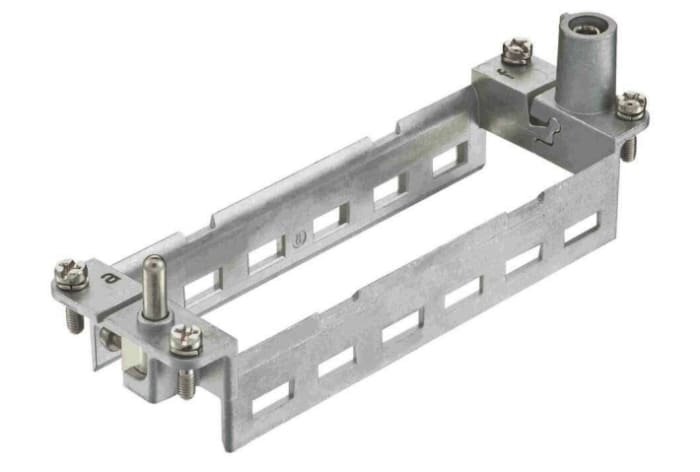

Harting HAN Modular Series Hinged Frame, 24B size, Grey - 9140240313

This hinged frame provides a metal mounting solution for rectangular connector hoods in industrial installations. It is intended to integrate with standard Han hoods and housings, offering a top-entry path for cabling and a hinged mechanism for straightforward access during assembly and maintenance.

Features & Benefits

• Die-cast zinc construction offers sturdy mechanical support
  Top cable entry reduces strain on conduit and wiring runs
  Four-contact capacity supports multi-conductor connector use
  Accommodates 4 mm²–10 mm² conductors for flexible wiring options
  M3 threaded fixing permits secure panel attachment
  Grey finish blends with control-cabinet interiors

**Applications**

• Suitable for panel-mounting Han connector hoods in automation cabinets
  Ideal for electrical junctions requiring service access to contacts
  Used with Han housings in machinery control panels
  Can be used for industrial connector assemblies in factory wiring

How does the hinge assist during maintenance operations?

The hinged mechanism allows the frame to swing open, enabling unobstructed access to connector contacts for inspection and rewiring without fully removing the housing.

What contact configuration does it support?

It supports a four-contact connector arrangement, allowing connection of multiple circuits within a single rectangular interface.

Which thread size should I prepare for mounting?

Mounting requires M3-threaded holes to match the frame’s fastening points for reliable attachment.

What cable sizes can be accommodated through the entry?

The TOP entry accepts conductor cross-sections from 4 mm² up to 10 mm², accommodating a range of industrial cable sizes.

Notes

The ’1’ module is for use with hoods and housings from range 2 – the Harting ’10A’ Series (see stock no. 181-0662 which is typical of that range)
