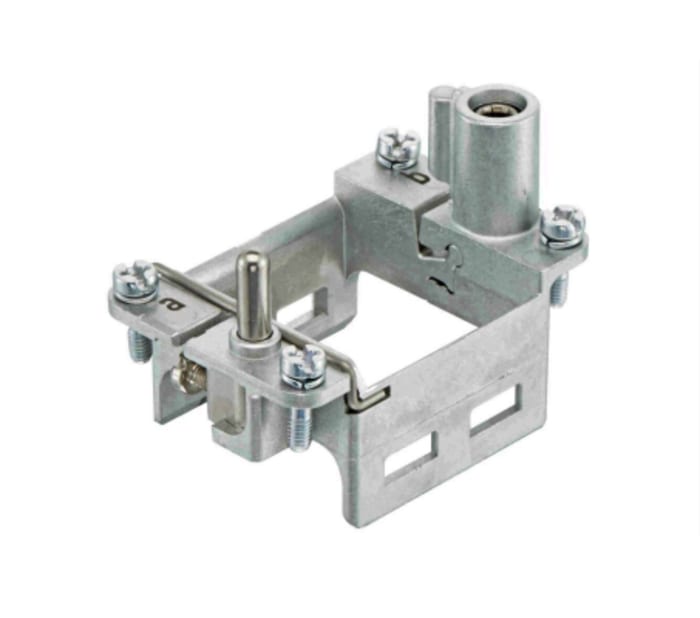

HARTING Hinged Frame, Han-Modular Series, For Use With Han Modular 2 Module A-B

Harting Han-Modular Series Hinged Frame, 6B size, Maximum Wire size 2.5mm² - 09140060371

This hinged frame is a key accessory designed for modular connectivity. Ideal for use with the Han Modular 2 Module a-b system, it accommodates wire sizes ranging from 0.5mm² to 2.5mm². Its size of 6 B ensures compatibility with a range of applications. This product effortlessly combines functionality and efficiency, making it a VITAL component for various electrical projects.

Features & Benefits

• Designed specifically for the Han Modular system
• Supports both minimum and maximum wire sizes efficiently
• Offers robust and Durable construction for long-term use
• Facilitates organised cable management in industrial settings
• Enables easy integration within modular connector frameworks
• Ideal for enhancing the performance of electrical connector accessories

Applications

• Used with Han Modular 2 Module a-b configurations
• Ideal for structured industrial automation environments
• Supports installations in electrical and mechanical systems
• Utilised in custom modular connector setups
• Suitable for complex wiring systems in automation projects

How does the design of the hinged frame facilitate ease of installation?

The hinged frame offers a straightforward design that simplifies the assembly process. Its structure allows for quick access and adjustment during installation, meaning users can easily connect or disconnect wiring as necessary.

What wire sizes can be accommodated when using this frame?

This frame is suitable for wire sizes starting from 0.5mm² and extending up to 2.5mm², meeting diverse connectivity needs across various applications.

In what types of environments can this hinged frame be effectively used?

The product is particularly effective in environments that require modular wiring solutions, such as automation and electrical engineering settings, where reliable and scalable connections are essential.

How does this product contribute to effective cable management?

The hinged frame allows for organised routing of wires, helping to prevent tangles and ensuring that the installation remains neat and accessible, which is Crucial for maintenance and troubleshooting.

Can this hinged frame be combined with other components?

Yes, it is designed to work seamlessly alongside other Harting accessories and modular connectors, enabling greater flexibility in assembling tailored electrical solutions.

Approvals

DNV GL
UL 1977 ECBT2.E235076
