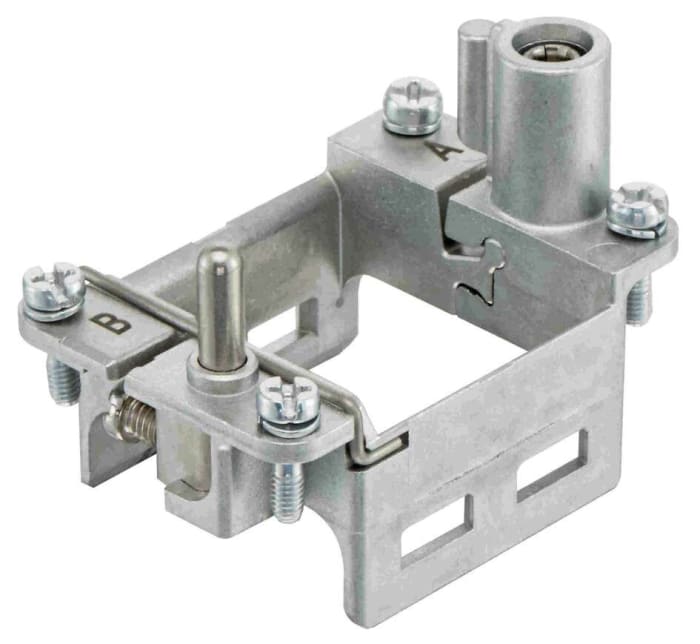

HARTING Hinged Frame, Han-Modular Series, For Use With Han Modular 2 Module A-B

Harting Han-Modular Series Hinged Frame, Top Entry Cable Angle, Zinc Die-Cast - 09140060361

This hinged frame provides a robust mounting solution for two-module Han Modular A-B insert assemblies, designed for industrial connector environments where top-cable entry is required. It is intended for use within control panels and equipment racks to allow hinged access to connected modules, with construction suited to harsh operational conditions and frequent mating cycles.

Features & Benefits

• Zinc die-cast body resists mechanical wear and corrosion
  Top-entry orientation simplifies cable routing in tight assemblies
  Rated for at least 500 mating cycles to support frequent use
  Accepts conductors up to 10mm² on power side for high-current feeds
  PE screw torque specified at 0.8 Nm M3 and 1.2 Nm M4 for secure earthing
  Withstands temperatures from −40°C to +125°C for wide thermal range

**Applications**

• Suitable for automation control panels requiring hinged access
  Ideal for electrical distribution modules in machinery enclosures
  Used with multi-module signal and power combinations in cabinets
  Can be used for retrofit of industrial connector assemblies
  Used for marine and offshore installations needing certified frames

Which conductor sizes can be terminated in the power and signal positions?

Power conductors may be up to 10mm² while signal conductors accept 0.5–2.5mm²
ferrules are recommended and mandatory for 10mm² when using the specific ferrule crimping tool.

What are the recommended tools and torque values for earthing screw installation?

Use a slotted 0.6 x 3.5mm or PH2 screwdriver, with PE screw tightening torques of 0.8 Nm for M3 and 1.2 Nm for M4.

How does the frame perform under temperature extremes?

It is specified to operate continuously between −40°C and +125°C, suitable for elevated thermal demands.

What approvals and standards relate to its use in industrial systems?

The frame conforms to relevant IEC connector standards and holds approvals including UL/CSA and DNV GL for applicable installations.

Approvals

DNV GL
UL 1977 ECBT2.E235076
