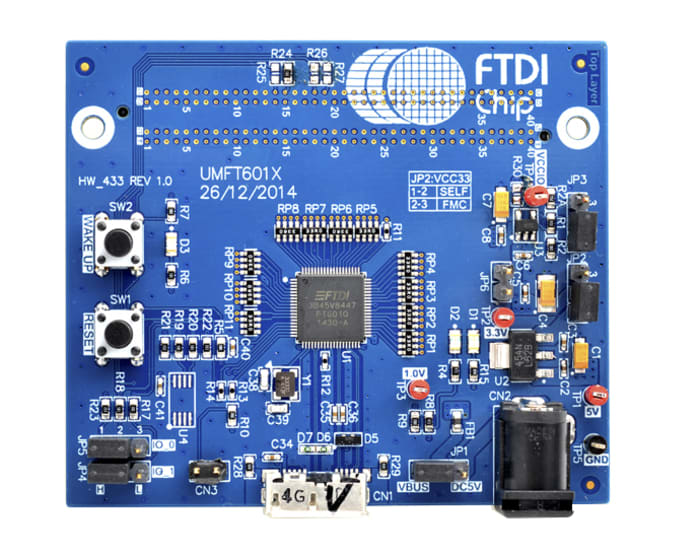

FTDI Chip Bridge Evaluation Board Evaluation Kit for FT60x 100 MHz UMFT601A-B

The UMFT60xA and UMFT60xX range of evaluation/development modules incorporate either HSMC/FMC(LPC) connectors for interfacing FTDI’s FT600/FT601 USB 3.0 Super speed IC with external hardware. The series allows for bridging a FIFO bus to a USB3.0 host and evaluating the functionality of the FT600/FT601. As a daughter card, the UMFT60xx must work with a FIFO Master board which has either a FMC or HSMC connector.

• Support for USB3.0 SuperSpeed
• 4 IN channels and 4 OUT channels on FIFO bus connectivity
• Vendor class USB device with D3xx driver support on the UMFT600x/UMFT601X for generic high speed, high volume applications such as data logging and image transfer
• UVC class USB device targeted at facilitating imaging applications supported by the UMFT602x
• 4 IN channels and 4 out channels on FIFO bus connectivity
