Fluke 87V-MAX Digital Digital Multimeter True RMS, 10 A, 10 A, 1000 V

Fluke Multimeter, 1000V Maximum DC Voltage, 10A Maximum DC Current - FLUKE-87V-MAX

This multimeter is a handheld True RMS digital multimeter designed for demanding industrial and field environments. It provides broad electrical measurement capability, robust environmental protection and extended battery life so technicians in automation, electronics, electrical and mechanical sectors can diagnose complex circuits, variable frequency drive systems and thermal conditions on site.

Features & Benefits

• True RMS measurement for accurate non-linear signal readings
  Measures up to 1000Vac and 1000Vdc for high-voltage work
  AC current measurement to 10A with 20A overload for short durations
  Frequency range to 199.99kHz for high-speed signal analysis
  Low resistance resolution to 50mΩ for tight-contact checks
  Runs on AA batteries delivering 800-hour operational life

**Applications**

• Suitable for commissioning and troubleshooting VFD-driven motors
  Ideal for maintenance of industrial distribution up to 1000V
  Used for in-situ temperature checks with supplied thermocouple probe
  Can be used for precision DC voltage diagnostics on control systems
  Used with portable test leads for on-site Peak transient capture

How does it handle electrically noisy equipment like VFDs?

It includes a low-pass filter to isolate fundamental frequency components and provide stable voltage and frequency readings on variable frequency drives.

What transient events can it Record for fault analysis?

It captures Peak transients with 250μs min-max sampling and stores Min/Max/Avg logs for later review.

What display and visibility features assist night or confined-space work?

The instrument uses a high-count display with a two-level bright white backlight and backlit keypad for improved readability in low light.

How is the unit protected against mechanical and environmental hazards?

The housing is sealed to IP67 standards and the construction endures a 4m drop test while the removable holster provides additional impact and probe storage protection.

What power arrangement and replacement details should I expect?

It is powered by three AA batteries which are user-replaceable and support long-duration field operations.

Contents

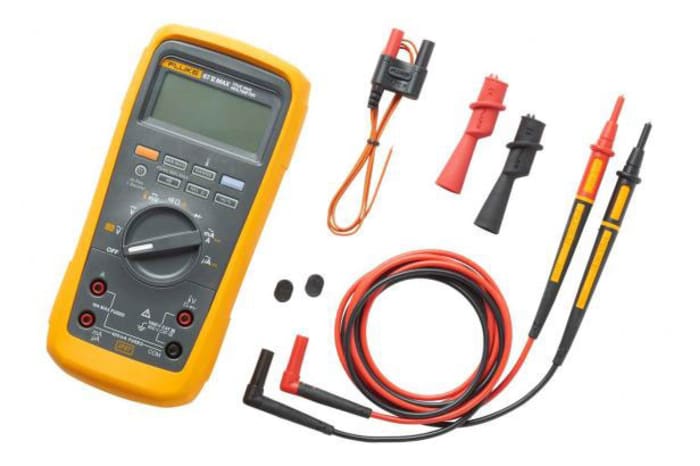

Holster, TL175 TwistGuard® test leads, alligator clips, 80BK-A temperature probe, three AA batteries (installed)
