Fluke 287 Multimeter Kit Multimeter Kit

Fluke Multimeter Kit, LCD Display - FLK-287/FVF/IR3000

This multimeter kit is a handheld electronic diagnostic instrument designed for industrial and laboratory use, combining a high-count display, onboard logging and PC software for data review. It integrates a wireless infrared connector for mobile app compatibility and supports long-duration unattended monitoring with time-stamped readings, suited to automation, electronics, electrical and mechanical environments.

Features & Benefits

• 50,000 count display delivers high-resolution Visual detail
  Onboard TrendCapture graphs logged sessions for quick analysis
  Up to 14x zoom on trends enables detailed anomaly inspection
  True-RMS inputs measure non-linear AC signals accurately
  10 A continuous and 20 A for 30 s current ranges cover heavy loads
  100 mF capacitance range captures large-component values

**Applications**

• Suitable for condition monitoring of motors using winding resistance checks
  Ideal for troubleshooting adjustable-speed drives in industrial plants
  Used for recording long-term voltage and current trends during commissioning
  Can be used for field diagnostics with live remote sharing to teams
  Used with maintenance workflows to associate readings with asset records

How does it handle noisy signals when measuring rapidly changing voltages?

A selectable low-pass AC filter smooths readings to present steadier values when the input is noisy or varying quickly.

What logging capacity is available before PC transfer is required?

The instrument stores up to 10,000 logged readings on-board and can save multiple sessions prior to download.

How are low-resistance measurements performed and corrected for lead resistance?

A two-terminal 50 Ω range with 1 mΩ resolution and relative mode allows precise comparison and removal of test lead resistance.

What connectivity options exist for sharing live measurements with remote personnel?

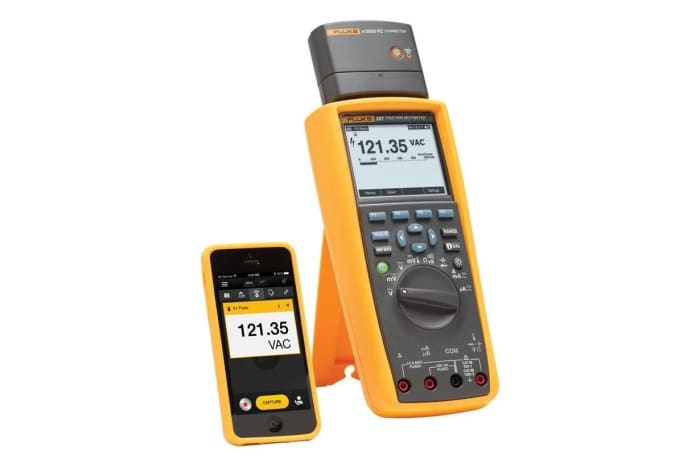

An infrared FC connector enables wireless transfer to compatible mobile devices and ShareLive™ video calls via the mobile app.

How does the meter capture fast transients?

Peak capture records events as short as 250 μs to detect transient spikes and Rapid changes.

Supplied with

Fluke 287 multimeter, Fluke ir3000 FC connector, FlukeView® forms software with cable, AC175 alligator clips, 80BK-A thermocouple probe, TL71 silicon test lead set, C280 soft case, Amp jack plug set, CD user manual and Info pack.
