Flir DM62 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 600V ac Max

Name: Flir DM62 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 600V ac Max
Brand: FLIR
SKU: 1681345

RS Stock No.: 168-1345Brand: FLIRManufacturers Part No.: DM62

View all in Multimeters

Technical Documents

Specifications

Brand

Flir

Multimeter Type

Handheld

Display Type

Digital

Model Number p

DM62

Functions Measured

AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance

Absolute Maximum AC Voltage Measurement

600V ac

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum Resistance Measurement

6MΩ

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum DC Voltage Measurement

600V dc

True RMS

Yes

Safety Category Level

CAT III, CAT IV

Best Resistance Measurement Accuracy

±0.9 %

Best AC Voltage Accuracy

±1 %

Battery Type

AAA

Dimensions

50 x 80 x 161mm

Safety Category Voltage

300 V, 600V

Best DC Voltage Accuracy

±0.4 %

Best DC Current Accuracy

±0.7 %

Weight

334g

Height

161mm

Width

50mm

Best AC Current Accuracy

±1 %

Length

80mm

Country of Origin

Taiwan, Province Of China

Product Details

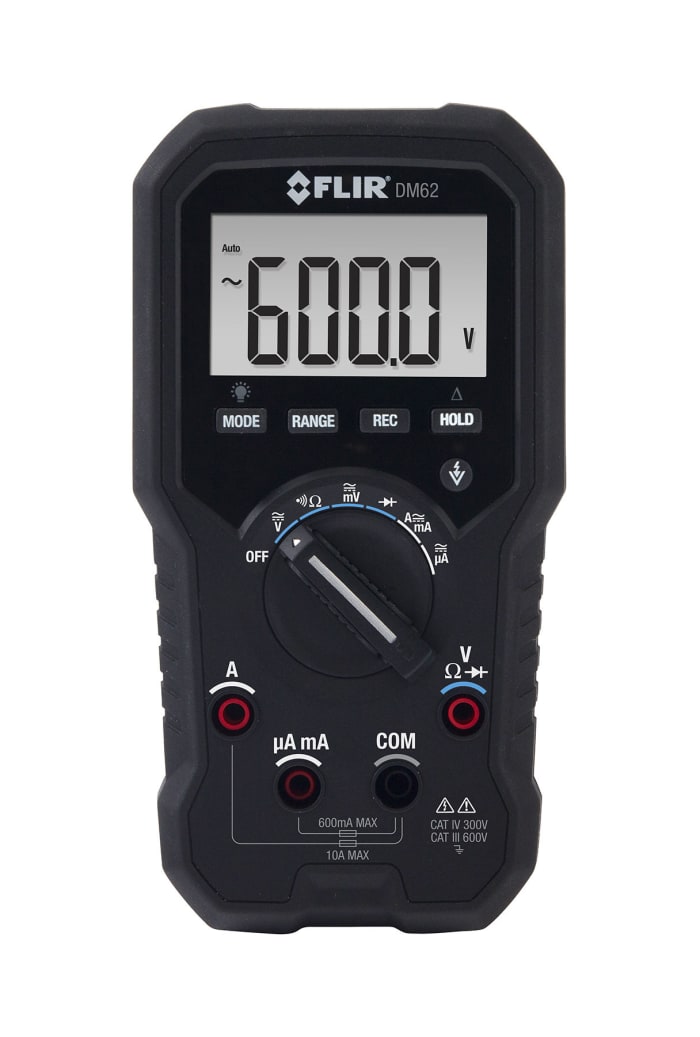

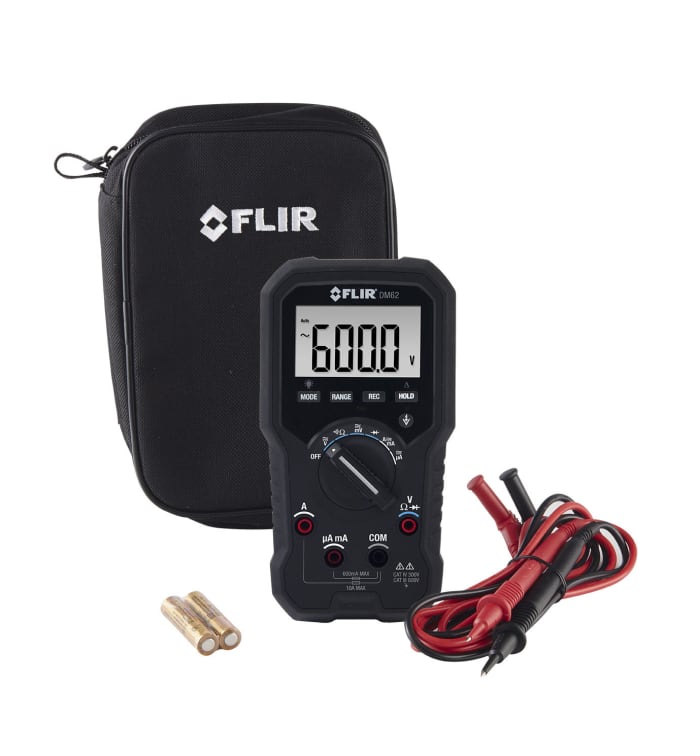

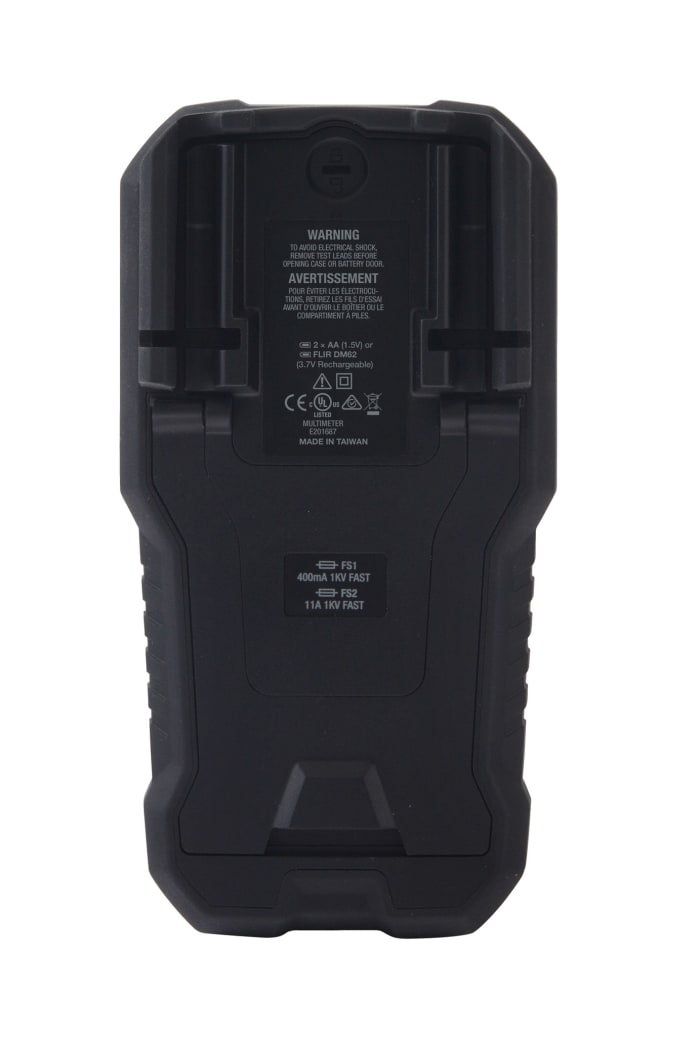

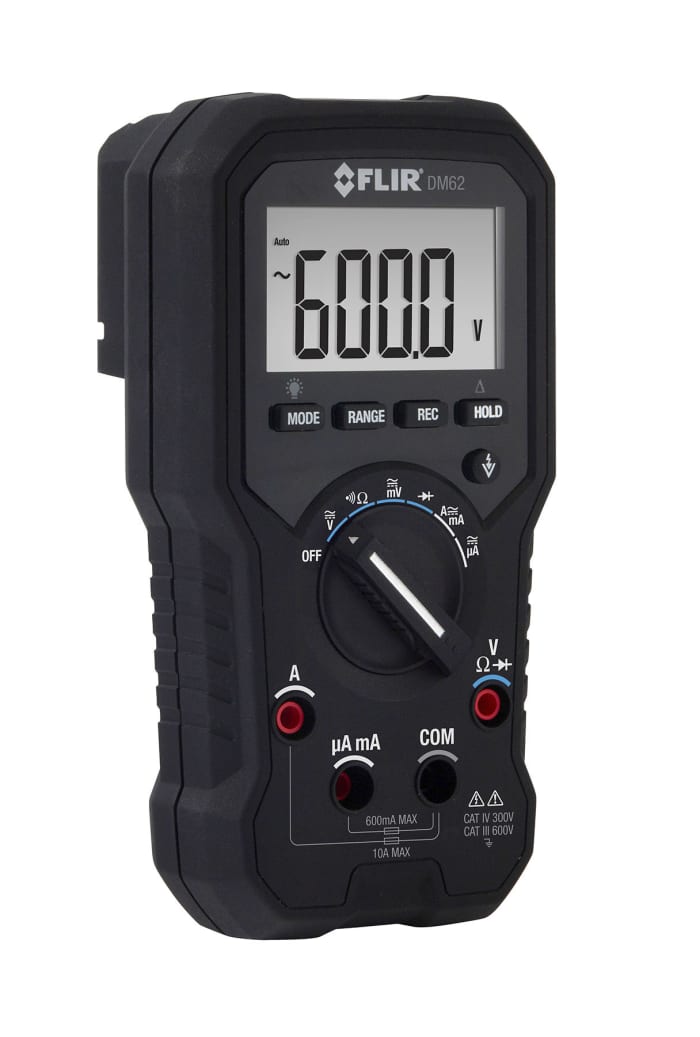

FLIR DM62 Digital Multimeter

The DM62 is a compact and ergonomic digital multimeter that can measure the essential electrical parameters. The DM62 features AC/DC voltage range of 0 to 600V, an AC/DC current range of 0 to 10A, and a resistance range of 0 to 6MΩ. This digital multimeter can be operated with one hand thanks to the compact design and easy-to-access buttons. The DM62 features non-contact voltage detection as well as frequency, diode, capacitance, and temperature measurement, 2 m drop-tested and IP40 rated.

Features and Benefits

Non-contact voltage detection

AC/DC voltage measurement: 0 to 600V

AC/DC current measurement: 0 to 10A

VFD voltage measurement

Resistance measurement: 0 to 6MΩ

Diode test and a continuity test

Measure both AC-DC voltage and current (A, mA, μA)

Diagnose faults with broad digital multimeter test functions including variable-frequency drive (VFD) mode and voltage range up to 600 V

Fast Efficient Testing and Troubleshooting

CAT IV-300V, CAT III600V Safety Category Rating

Applications

Industrial

Electrical

Frequently asked questions

Q: What is VDF on the DM62 multimeter?
A: DM62 digital multimeters offer variable frequency drive filtering (VDF) to help you accurately analyze non-traditional sine waves and noisy signals.
