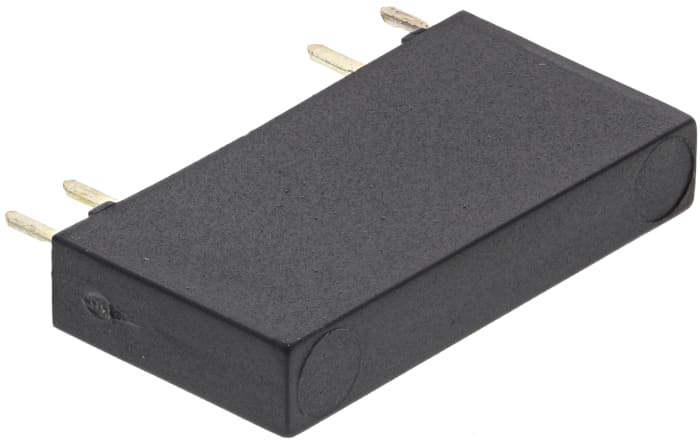

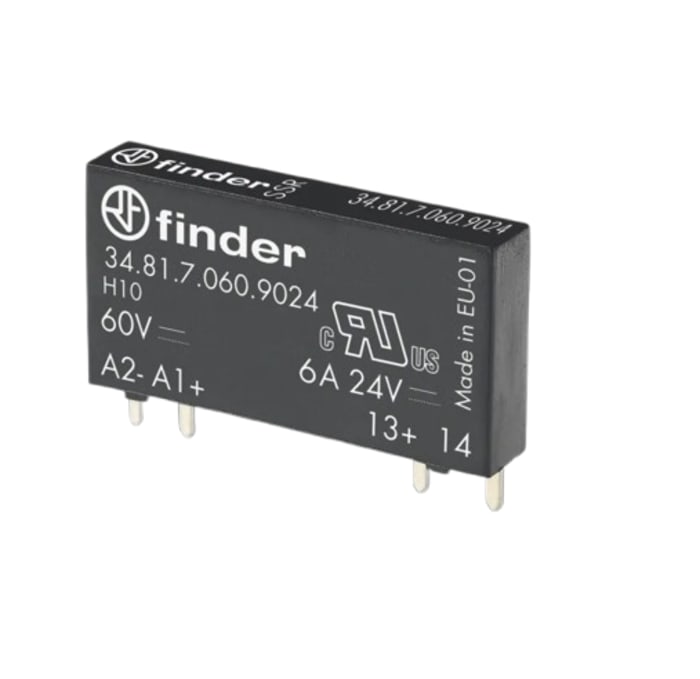

Finder 34 Series Solid State Relay, 6 A Load, PCB Mount, 24 V dc Load, 60 V dc Control
Technical Document
Specifications
Brand
FinderMaximum Load Current
6 A
Mounting Type
PCB Mount
Maximum Load Voltage
24 V dc
Minimum Load Voltage
1.5 V dc
Maximum Control Voltage
60 V dc
Minimum Control Voltage
5 V dc
Control Voltage Range
5 → 60 V dc
Minimum Load Current
0.001 A
Number of Poles
1
Contact Configuration
SPST
Package Style
SIP4
Relay Type
Solid State Relay
Maximum Turn On Time
0.02 ms
Series
34
Load Voltage Range
1.5 → 33V dc
Dimensions
28 x 5 x 15mm
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+70°C
Operating Temperature Range
-20 → +70°C
Off State Leakage Current
0.001 mA
Length
28mm
Depth
5mm
Height
15mm
Standards Met
cURus, EAC
Special Features
Ultra Slim
Country of Origin
Italy
Product details
34 Series
Slim 5mm SSR
AC versions have zero cross switching
Isolation between input and output 2500Vac
Wash tight RTIII
Dimensions (WxHxD) 5.0x15.5x28mm
Operating temperature range -20 to +60°C
Approvals
UL
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 31.45
€ 31.45 Each (Exc. VAT)
Standard
1
€ 31.45
€ 31.45 Each (Exc. VAT)
Stock information temporarily unavailable.
Standard
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 31.45 |
| 10 - 24 | € 28.93 |
| 25 - 49 | € 27.69 |
| 50+ | € 26.73 |
