EAO Modular Switch Cap for Use with 14 Series Push Button Switch

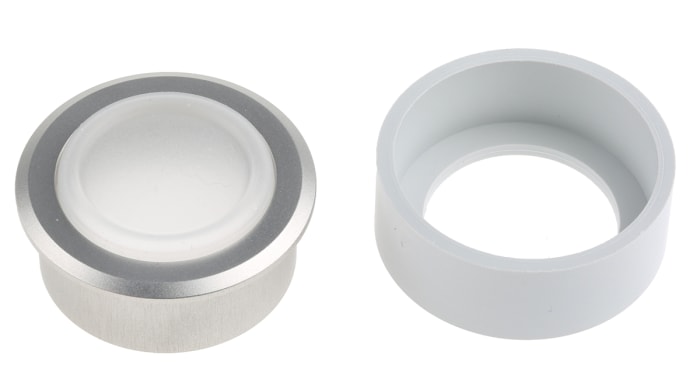

EAO Modular Switch Cap, For Use With 04 Series Push Button Switch, 35mm Diameter - 04 Series - 704.955.3

Protect your push buttons from dirt particles using this modular switch cap from EAO. It's designed to fit over flush-mount push buttons from the 04 series for ease of assembly. It features a robust silicone membrane that offers protection against moisture for safe use in harsh settings. This membrane also has insulating properties to help protect you from electrical hazards. The body of this component is made from natural anodised aluminium that's resistant to impact and corrosion for an extended service life.

Features & Benefits

• IP67 rating indicates it's dust-tight and protected against immersion in 1m of water for up to 30 minutes
• Compact diameter of 35mm to fit on panels with limited space
• Wide operating temperature range between -25°C and +55°C for use in challenging environments

Applications

• Conveyor systems
• Mining and quarrying industry
• Control panels
• Oil and gas industry
• Laboratories

Does this switch cap help prevent tampering?

This versatile switch cap can serve as a shield to prevent the push button from being activated, helping to minimise the risk of tampering.

Push Button Switches Series 14

The 14 series has been designed to offer premium quality with a wide range of options available. These include push buttons, indicators, various lens colours, covers and bezels.

• Switches and Indicators supplied with raised bezel
• Raised Mounting into 22.5 mm cut out
• Flush mounting into 30.5 mm cut out
• Illumination using T5.5 Lamps or LED’s
• All standard lenses are transparent with translucent diffuser
• Solder, plug-in or PCB connections
• Operating temperature range: -25 to +55 °C

Notes

To obtain IP 67 front end use Marking plate contained in lenses set see stock number 6906777. The status of a maintained action switch can be determined by the position of the lens.
