Digilent 410-385 Breadboard Breadboard Canvas

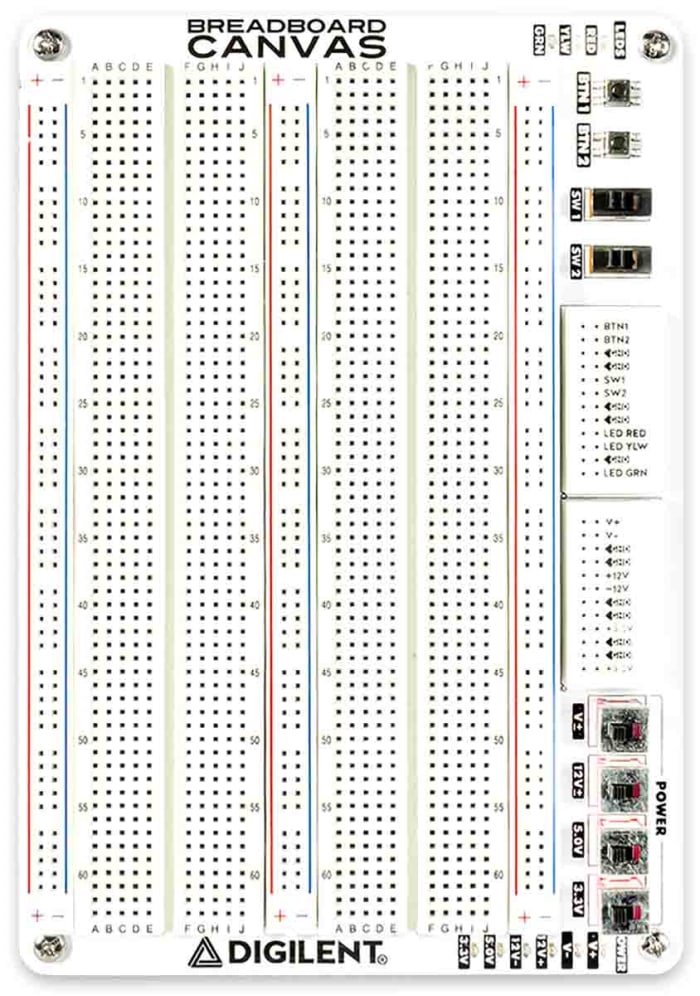

The Digilent's breadboard canvas which provides a replaceable physical interface for the analogue discovery studio. The breadboardable features two regular sized solderless breadboards appropriate for medium to large circuits. Two small breadboards provide connection to the six available power supplies (3.3V, 5V, ±12V, and ± variable). Connections to the I/O is also included. Two switches, LEDs, and buttons have been included on the breadboard canvas to provide an easy to use interface.

• Connection possible with 6 power supplies
• Build in LED's indicate which power supplies are active.
• Two switches are available on the breadboard Canvas. When switched to the “On” position, they provide a connection between the 5V power rail and the corresponding pins on the built in I/O breadboard. The 5V power rail must be enabled to use the buttons.
