Digilent 410-361 Adapter

Digilent Breadboard Adapter

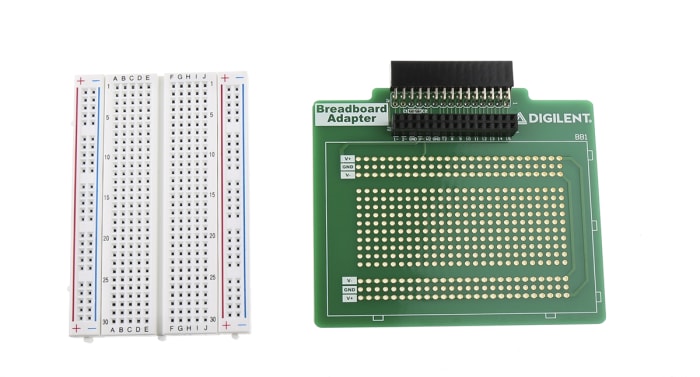

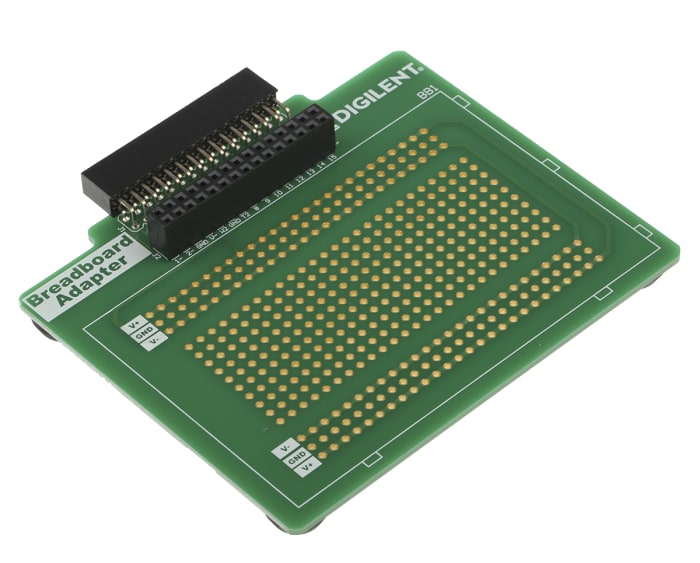

The Digilent breadboard adapter is intended to be used with the Analog Discovery tool to provide a prototyping surface with a secure connection. It provides a female header to pass through all the connections from the Analog Discovery 2 as well as a prototyping surface. The PCB provides two power rails directly routed from the V+ and V- pins on the Analog Discovery. The components and wires can be soldered to the prototyping surface and power rails.

Features and Benefits:

• 30-pin female headers pass through all signals from the Analog Discovery

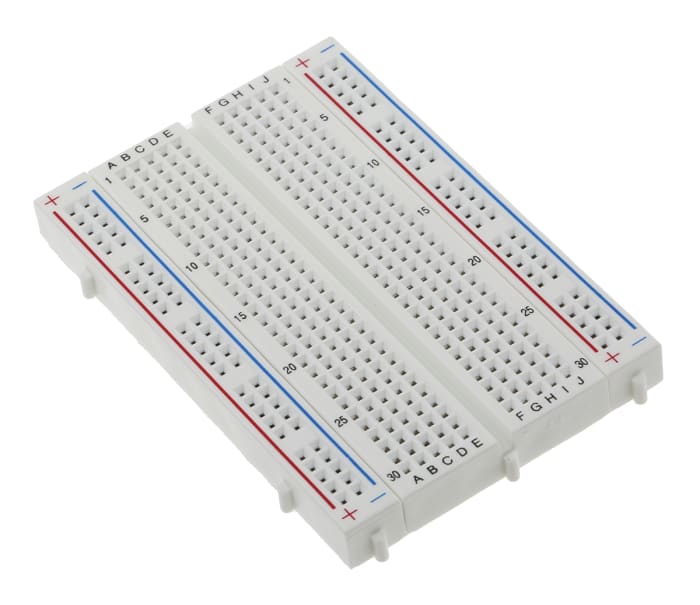

• One half-sized solderless breadboard is included to provide connections
• Protoboard area consists of 26 rows of 10 plated through-holes
• Provides an alternative to the Flywires for analogue discovery
• Two 26 hole V+, V- and GND rails routed from a 30-pin connector

Applications:

• Electronics laboratories
• Embedded systems
• Networking

Certifications:

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
