Crouzet em4 Local Series PLC CPU for Use with em4 Series, Relay, Static Output, 16-Input, Analogue, Digital Input
Technical Document
Specifications
Brand
CrouzetManufacturer Series
em4 Local
Number of Inputs
16
Output Type
Relay, Static
For Use With
em4 Series
Input Type
Analogue, Digital
Number of Outputs
10
Voltage Category
24 V dc
Network Type
Modbus with accessory
Better World Claim
Designed for disassembly
Better World Product (Find out more)
Yes
Mounting Type
Panel Mount
Programming Language Used
Function Block, Sequential Function Chart
Programming Interface
USB
Minimum Operating Temperature
-20°C
Battery Backup
Yes
Dimensions
124.6 x 90 x 60.4 mm
Communication Port Type
Modbus RS485 with accessory
Display Included
Yes
Program Capacity
1000 blocks (without macro), Upto 64 macros (256 blocks each)
Depth
60.4mm
Length
124.6mm
Width
90mm
Number of Communication Ports
1
Output Current
500 mA, 6/8 A
Maximum Operating Temperature
+60°C
Country of Origin
Spain
Product details

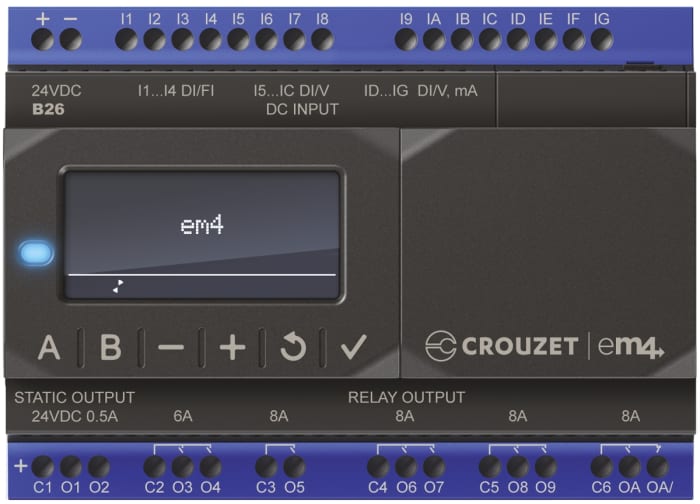

em4 ethernet CPU B26 24V dc
The most intuitive and easy to use nano-PLC on your Ethernet network. With the Crouzet em4 Ethernet communicate with up to 16 em4 Ethernet or other devices with the Ethernet Modbus TCP/IP standard protocol Client and Server. Program and debug your em4 Ethernet from anywhere on the Ethernet local network. Simplified adressing process between two em4.
Highly accurate 4-20mA analogue inputs for industrial sensors
4 lines with 18 characters per line with highly Visual display
Large memory space for application and remote funtions program
Manage timed or trigger based data exchange between devices via Modbus TCP/IP Network
Receive scheduled simple datalogs via email or FTP
Send email alerts fully controlled by the application program
Standards
CE, cULus Listed, IEC/EN 61000-6-1,2,3 & 4 in accordance with 2001/108/EC EMC Directive
Crouzet em4
€ 484.36
€ 484.36 Each (Exc. VAT)
1
€ 484.36
€ 484.36 Each (Exc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
