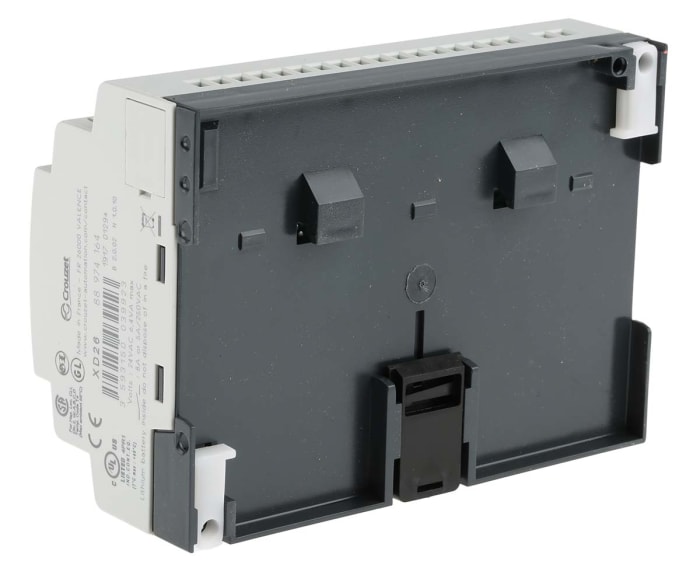

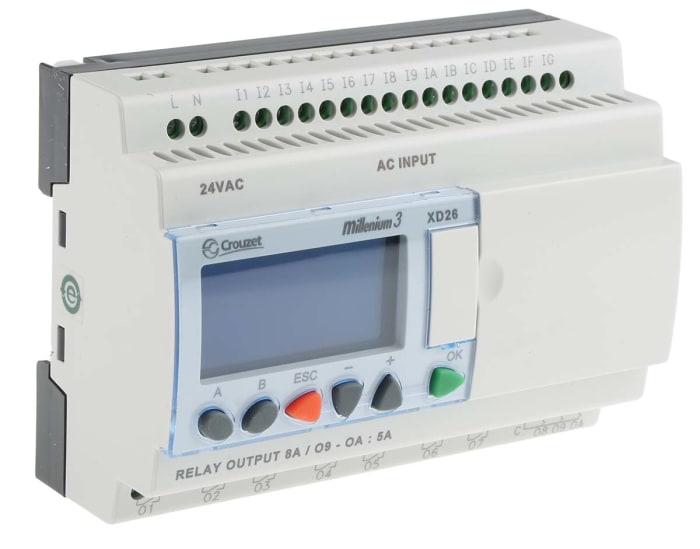

Crouzet Millenium 3 Series Logic Module, Relay Output, 16-Input, Digital Input

Crouzet Logic Module

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium expandable version XD26 series with 16 digital inputs and 10 relay outputs of 8 x 8 A relay and 2 x 5 A relay contact current rating. This DIN rail mounting type logic module has a screw termination method. It has a large memory for applications that require a larger space. The logic module has a voltage rating of 24VAC.
Crouzet Millenium 3:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming.

Features and Benefits

• Operating temperature ranges between -20°C and +55°C
• Battery backup
• Highly visible blue LCD with 4 lines of 18 characters
• and configurable backlighting
• Allow the use of the entire library of specific functions
• blocs of the software workshop
• Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR
• (0-20 mA/Pt100 with converters)
• Choice of ladder or function block programming
• Serial, USB port communication
• Protects program
• Selective configuration
• Memory back-up using EEPROM
• ESD protected
• Expandable controller
• LCD display
• Memory size 368bits
• Compact controller

Applications

• Automatic washing equipment
• Agricultural machinery
• Managing air conditioning
• Heating systems

Certifications

• CE
• UL approved
• UL approved
• CSA
• IP40 rated
