Technical Documents
Specifications
Brand
CrouzetProduct Type
Logic Control
Series
Millenium Evo
Number of Inputs
16
Output Type
Relay
Input Type
Analogue, Digital
Number of Outputs
10
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
70°C
Standards/Approvals
IEC/EN 61131-2, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
Programming Language Used
Ladder Logic, FBD, Sequential function chart (SFC)
Program Capacity
368bit
Number of Communication Ports
2
Battery Backup
Yes
Display Included
Yes
Communication Port Type
USB, Serial
Supply Voltage
24V dc
Mount Type
DIN Rail
Country of Origin
France
Product Details

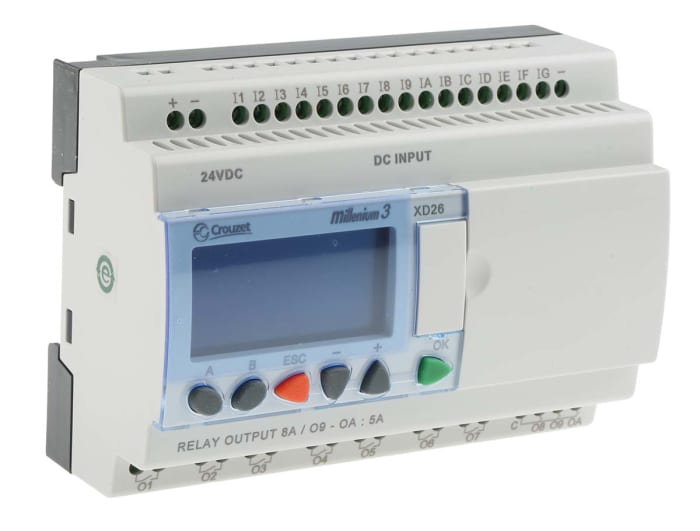

The Crouzet Millenium 3 series logic module is the latest generation of the Millenium compact version XD26 series with 16 digital (including 6 analogues) inputs, 8 relay outputs of 8A current rating and 2 relay outputs of 5A current rating. These PLCs have modular versions, designed for application-specific functions. It is the easiest programmable module to use on the market. It enables the control and monitoring of machines and automation installations with up to 50 I/O. This product also offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors, and disabled access ramps.
Crouzet Millenium 3
:
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10-bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bar graph functionality
Choice of ladder or function block programming
Stock information temporarily unavailable.
€ 438.57
€ 438.57 Each (Exc. VAT)
1
€ 438.57
€ 438.57 Each (Exc. VAT)
Stock information temporarily unavailable.
1
