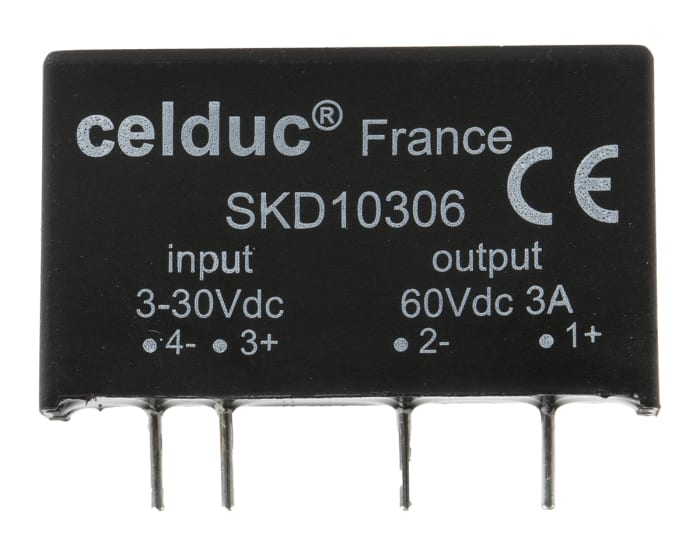

Celduc SKD 10306 Series Solid State Relay, 3 A Load, Printed Circuit Board Mount, 60 V Load, 30V Control
Technical Document
Specifications
Brand
CelducMaximum Load Current
3A
Product Type
Solid State Relay
Mount Type
Printed Circuit Board
Maximum Load Voltage
60V
Maximum Control Voltage
30V
Minimum Control Voltage
3V
Series
SKD 10306
Terminal Type
Solder Pin
IP Rating
IP20
On State Resistance
40mΩ
Minimum Operating Temperature
-40°C
Switching Function
Zero Cross Switching
Maximum Operating Temperature
80°C
Standards/Approvals
UR

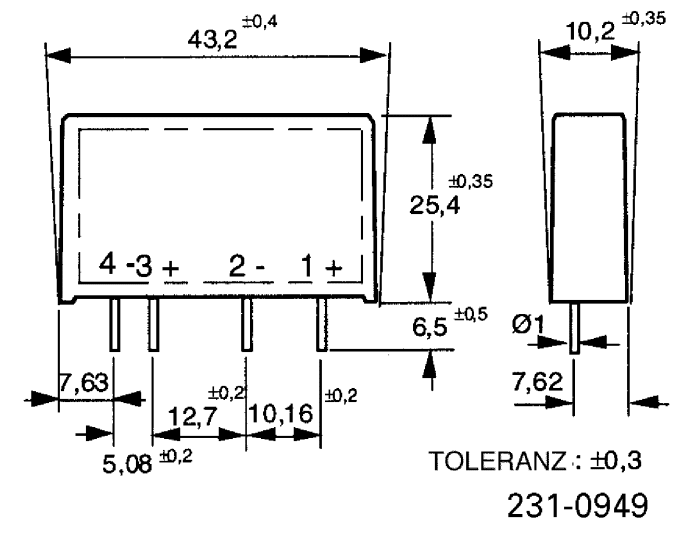

Width
10.2mm
Height
25.4mm
Length
42mm
Output Type
DC
Off State Leakage Current
6mA
Capacitance
8pF
Country of Origin
France
Product details

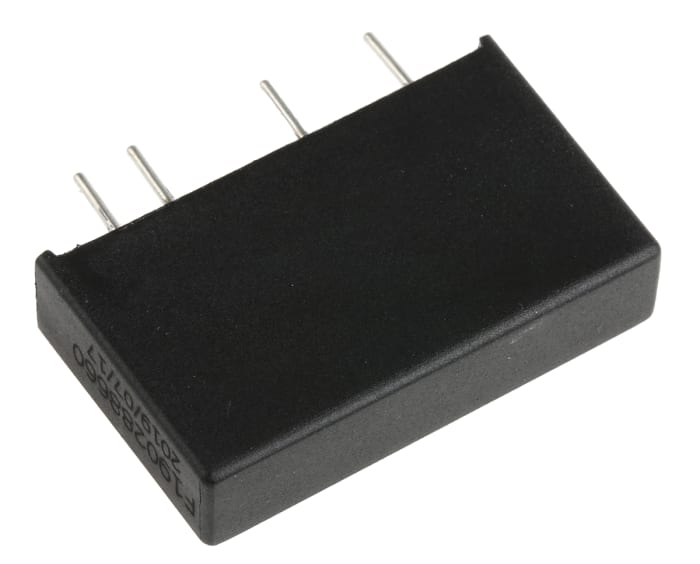

PCB-mount vertical solid state relays
These relays feature a high level of immunity to outside interference, a very low off-state leakage current and a surge suppressor.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 23.89
€ 23.89 Each (Exc. VAT)
1
€ 23.89
€ 23.89 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 23.89 |
| 10 - 99 | € 21.55 |
| 100+ | € 18.17 |
