Technical Documents
Specifications
Brand
C & KProduct Type
Slide Switch
Contact Configuration
SPDT
Mount Type
Panel
Switch Operation
Latching
Switch Contact Current
6A
Terminal Type
Solder
Illuminated
No
Contact DC Voltage
28V dc
Contact AC Voltage
250V ac
Switch Configuration
On-None-On
Depth
15.37mm
Length
19.56mm
Standards/Approvals
UL, CSA
Width
6.1mm
Series
1000
Mechanical Life
40000Cycles
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
65°C
Actuator Material
Nylon
Product Details

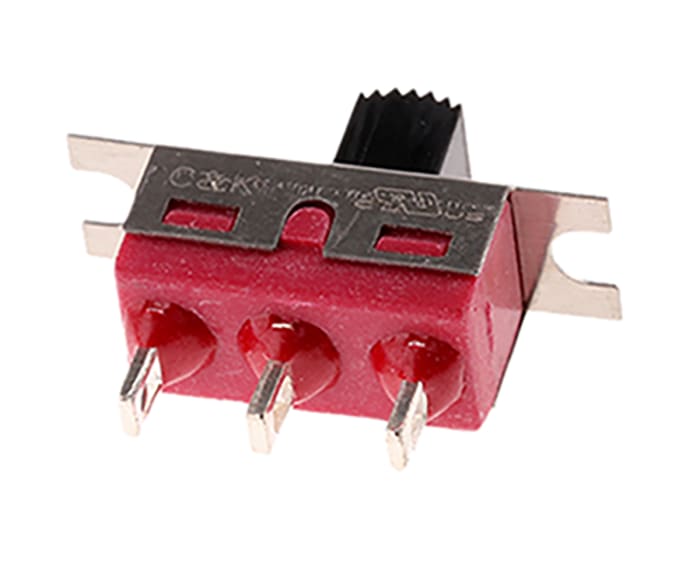

C&K Series 1000 miniature slide switches have epoxy sealed terminals which makes them suitable for bottom wash cleaning. They are designed for use in a wide variety of applications including test and measurement equipment, telecommunications and computer peripherals.
UL; CSA
Stock information temporarily unavailable.
€ 5.81
€ 5.81 Each (Exc. VAT)
1
€ 5.81
€ 5.81 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 5.81 |
| 25 - 99 | € 5.54 |
| 100 - 249 | € 5.33 |
| 250 - 499 | € 5.13 |
| 500+ | € 4.95 |
