Bulgin Circular Connector, 3 Contacts, Cable, Miniature Connector, Socket, Female, IP68, Buccaneer 400 Series

Bulgin Cable Coupler Connector

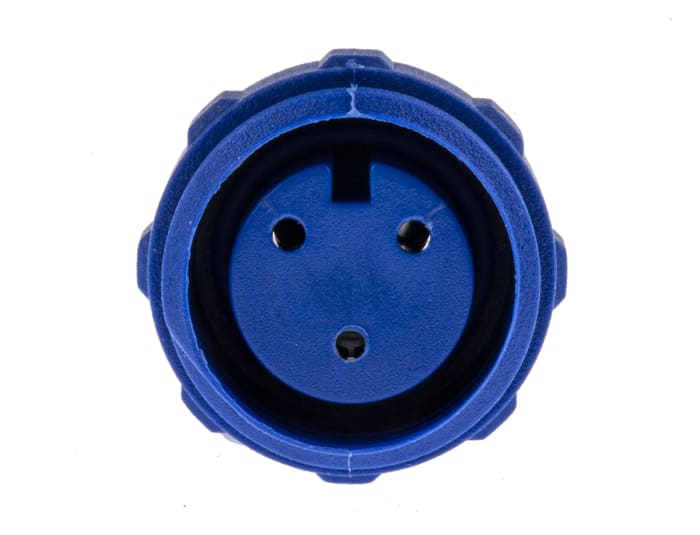

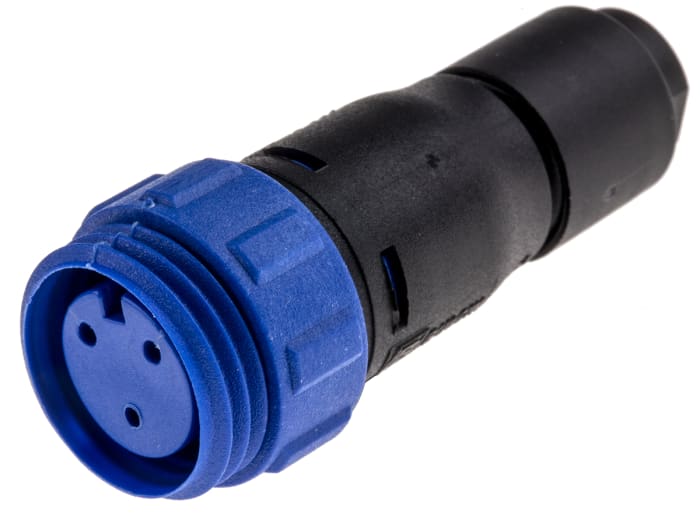

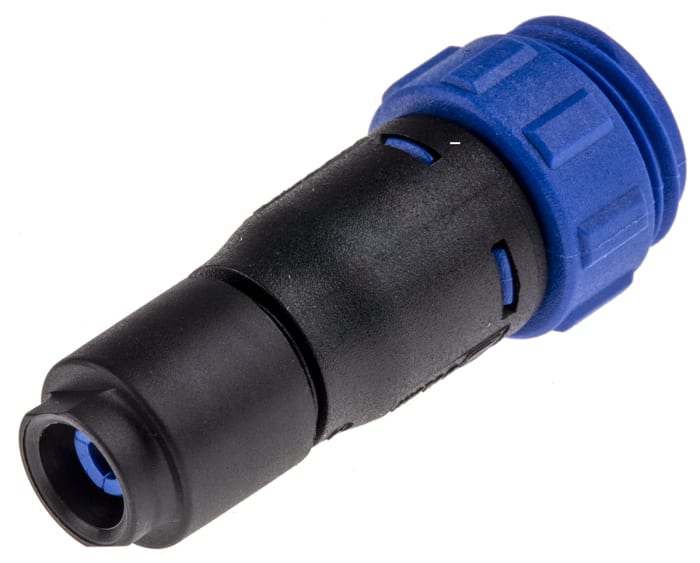

The Bulgin Buccaneer 400 series 3-poles female circular in-line flex cable connector has a socket type connection. This connector has a voltage rating of 250VAC/DC and current rating is up to 8A per contact. This cable mounting connector is ideal for use in challenging conditions. The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts.

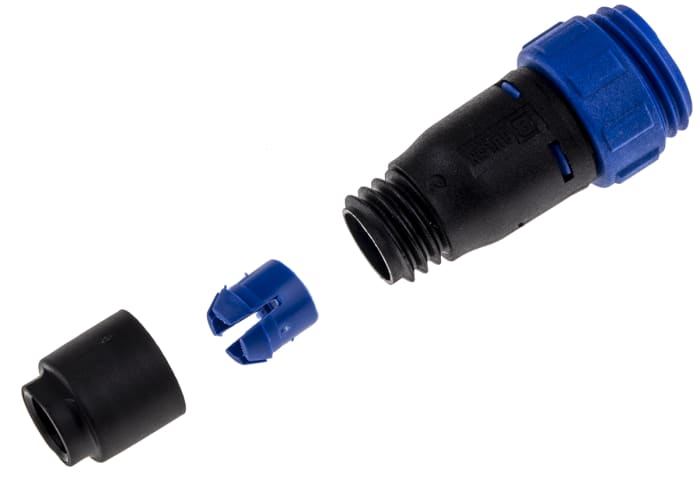

Includes:
6 pcs - 1 connector
Backshell
Cage clamp
Clamp nut
Gland
O-ring

Features and Benefits

• Crimp or solder termination
• Straight body orientation
• Cable outlet ranges between 5.5mm and 6mm
• Easy assembly, no special tools required
• Mates with in-line flex connector
• Operation temperature ranges between -40°C and 80°C
• Shell size is 19mm
• Strain relief clamp
• Water and dustproof

Applications

• Electrical equipment
• Industrial automation

Certifications

• CSA certified
• IP68 rated
• IP69K
• UL approved
• VDE approved

Approvals

UL; CSA; VDE
