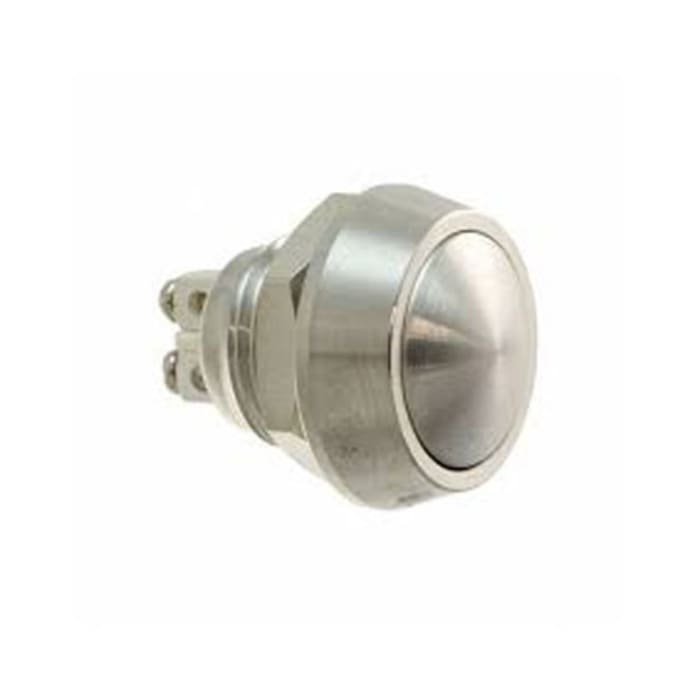

Bulgin MMP0120 Series Push Button Switch, Momentary, Panel, 12 mm Cutout, SPST, IP67, 36 V 36 V
Technical Document
Specifications
Brand
BulginActuator Colour
Silver
Product Type
Push Button Switch
Switch Operation
Momentary
Illuminated
No
Series
MMP0120
Panel Cutout Size
12 mm
Mount Type
Panel
Contact Configuration
SPST
Terminal Type
Screw
IP Rating
IP67
Minimum Operating Temperature
-25°C
Contact DC Voltage
36V
Contact AC Voltage
36V
Actuator Style
Round
Maximum Operating Temperature
55°C
Switch Configuration
Push to Make
Switch Contact Current
2 A
Standards/Approvals
RoHS
Legend
Blank
Country of Origin
China
Product details

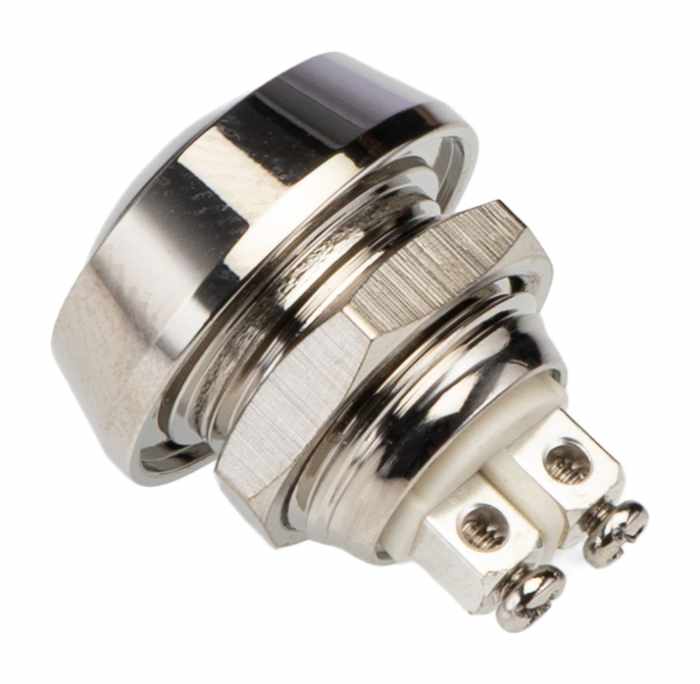

Vandal Resistant Pushbutton Switches - MMP0120 Series
Features and Benefits
• 12mm diameter, raised domed profile
• Front Panel Sealed to IP65, some variants also available to IP67 (part codes containing 67)
• Illuminated versions
• Choice of Termination, depending on part code suffix: S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals
• Choice of body material and button material, depending on part code:
- Stainless Steel body and button: /SSS
- Nickel Plated Brass body and button: /NNB
- Black Anodized Aluminium body: /A with PBT button in a choice of colour: RD - Red, GN - Green, BL - Blue, BK - Black
Stock information temporarily unavailable.
€ 15.66
€ 15.66 Each (Exc. VAT)
1
€ 15.66
€ 15.66 Each (Exc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | € 15.66 |
| 10 - 24 | € 14.91 |
| 25 - 49 | € 14.16 |
| 50 - 99 | € 13.48 |
| 100+ | € 13.17 |
