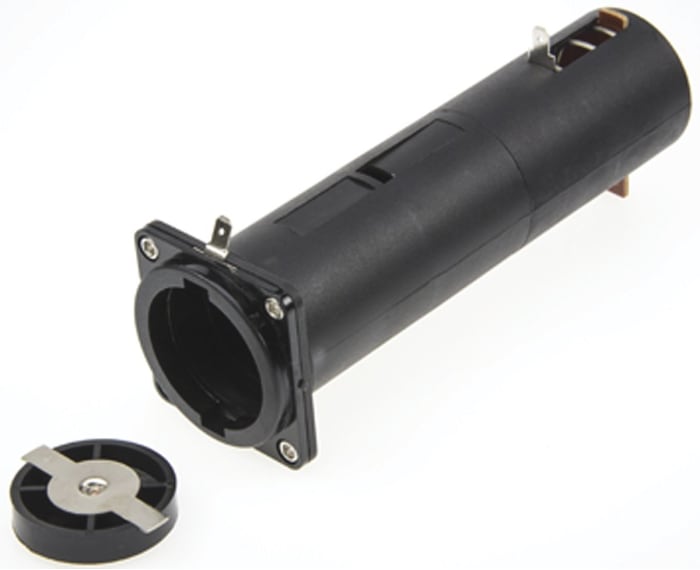

Bulgin D Battery Holder Solder Tag

Name: Bulgin D Battery Holder Solder Tag
Brand: Bulgin
SKU: 0507523
Availability: LimitedAvailability

RS Stock No.: 507-523Brand: BulginManufacturers Part No.: BX0017

View all in Battery Holders

Technical Documents

Specifications

Brand

Bulgin

Product Type

Battery Holder

Compatible Battery Size

Sub Type

Battery Holder

Number of Cells

Mount Type

Panel

Body Material

Nylon, Polycarbonate

Termination Type

Solder Tag

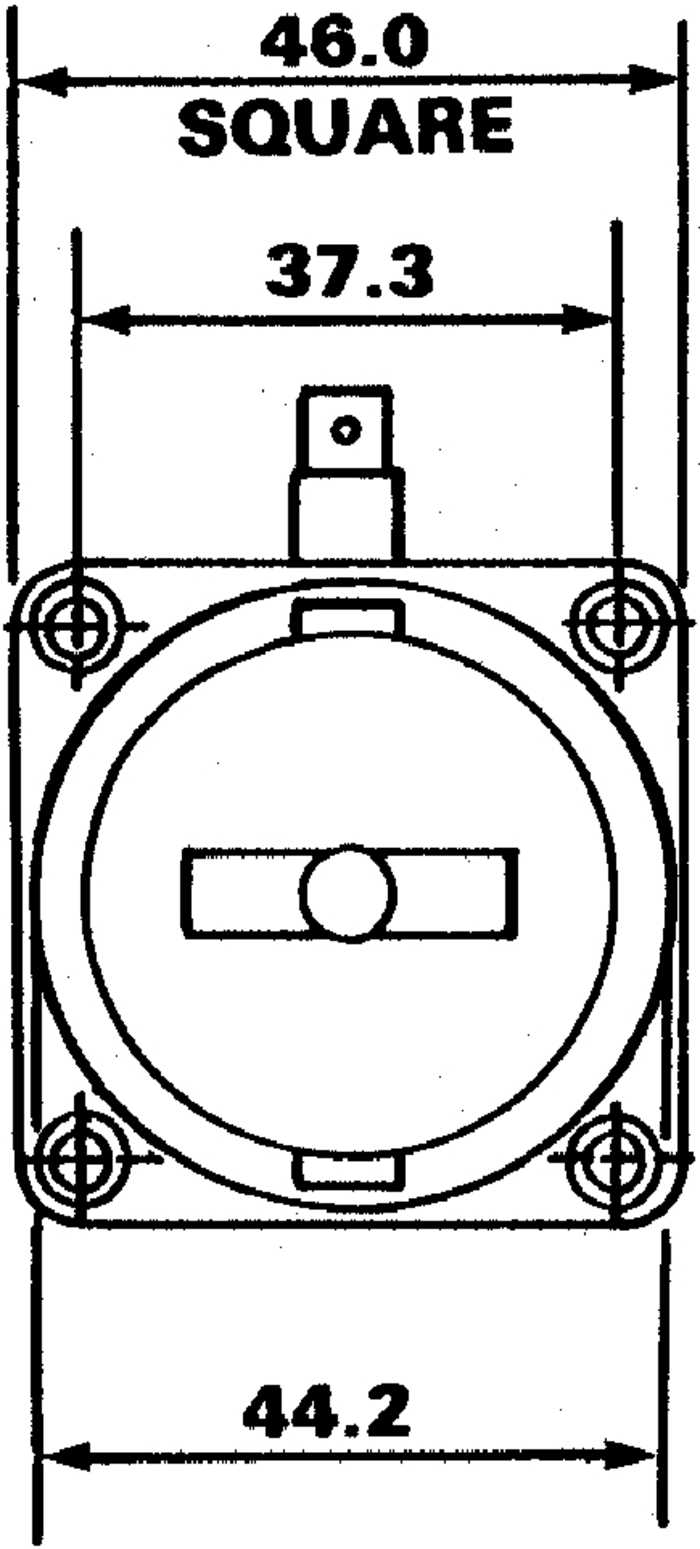

Diameter

37.3mm

Standards/Approvals

RoHS

Width

46mm

Series

BX0

Height

46mm

Length

143.5mm

Country of Origin

Tunisia

Product Details

Cylindrical Style

Panel mounting cylindrical battery holders for standard cell sizes
Quick and easy replacement of batteries
All holders are moulded in black plastic
Bayonet fixing front cap with a coin slot for easy removal
A supplementary rear support tag should be used on dual cell holders
2xD holder can be separated to accommodate a single D cell

Notes

Suitable hole cutter for 2xD is stock no. 541-107
